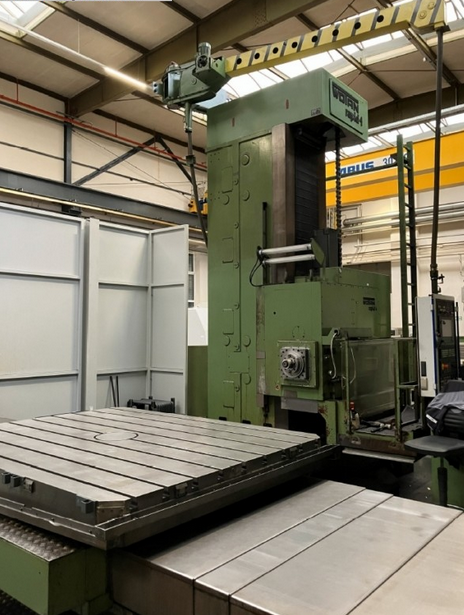

Wotan RAPID 4 AR/20 150 mm 2,500 RPM
Ref :
2797377-3-AW
Condition :
Used
Manufacturer :
Wotan
Model :
RAPID 4 AR/20
Spindle Size :
150 mm
Spindle Speed :
2,500 RPM
Year(s) :
1982
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Retrofit 2004
X-axis travel: 3,000 mm
Y-axis travel: 2,000 mm
Spindle stroke: 700 mm
B-axis: 360°
Feed rate: 5,000 mm/min
Rapid traverse: 10 m/min
Spindle diameter: 150 mm
Spindle taper: ISO 50
Spindle speed: 2–2,500 RPM
Ram horizontal adjustment: 700 mm
Ram dimensions: 340 x 340 mm
Table surface: 2,500 x 2,000 mm
Table load capacity: 25,000 kg
Total power: 100 kW
Machine weight: 38.5 ton
Machine dimensions: 8.40 x 6.80 x 5.90 m
Features / Equipment
Ram-type floor boring and milling machine
Retrofit in 2004
