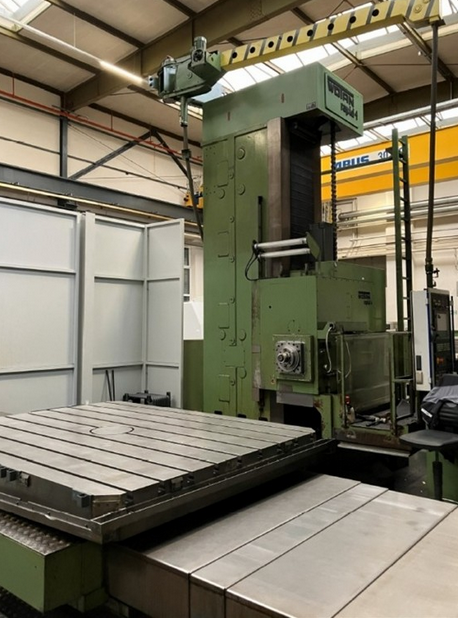

Wotan RAPID 4A R/20 150 mm 1600 RPM

Ref : 2790297-3-AW

Condition : Used

Manufacturer : Wotan

Model : RAPID 4A R/20

Spindle Size : 150 mm

Spindle Speed : 1600 RPM

Year(s) : 1982

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X travel: 3000 mm
Y travel: 2000 mm
Spindle stroke: 700 mm
Ram stroke: 700 mm
Column travel: 1500 mm
B-axis: full
Control: Siemens 840D CNC
Aerostatic guideways
Coolant attachment
Internal coolant supply
Spindle diameter: 150 mm
Ram dimensions: 340 x 340 mm
Spindle taper: ISO 50
Spindle speed: 3.2–1600 RPM
Facing head speed: 3.2–140 RPM
Angular milling head torque: 1000 Nm
Table size: 2000 x 2500 mm
Max table load: 25000 kg
Feed speed: 1–5000 mm/min
Rapid speed: 5 / 10 m/min
Total power: 100 kW
Machine weight: 57 t
Machine dimensions: 8.4 x 6.8 x 5.9 m
