Wrapmatic GRM automatic Folio size ream Wrapper - overhauled

GRM - Grandi Risme Modulare, is a flexible and completely automatic system to
wrap folio-size paper reams.
Can be shown in operation

Technical Information:

Max speed : 17 reams / min.
Min. size: 420 x 420 mm - Max size: 1000 x 1400 mm
Substance of paper to be wrapped: 60 - 400 gr/ sqm.
Max height of pallet of paper: 1800 mm (pallet included)
Max load on depallettiser and pallettizer 1500 kg
Wrapping paper: from reel double - shaftless reel holder)
Wrapping material: Kraft Paper, Poly-coated paper (internally)
Substance of wrapping paper: 80 -120 gr/sqm
Depalettizing: from single or double stack
Palettizing: in single or double stack
Size change over time: 5 - 6 minutes with guarantee of no reams rejected
at size change over

Power supply: 380 V - 50 Hz
‐ Max Power consumption installed : 35 Kw
‐ Max consumption : 20 Kw
Compressed air supply: 6 to 7 bar
‐ Consumption : 400 Nlt/min

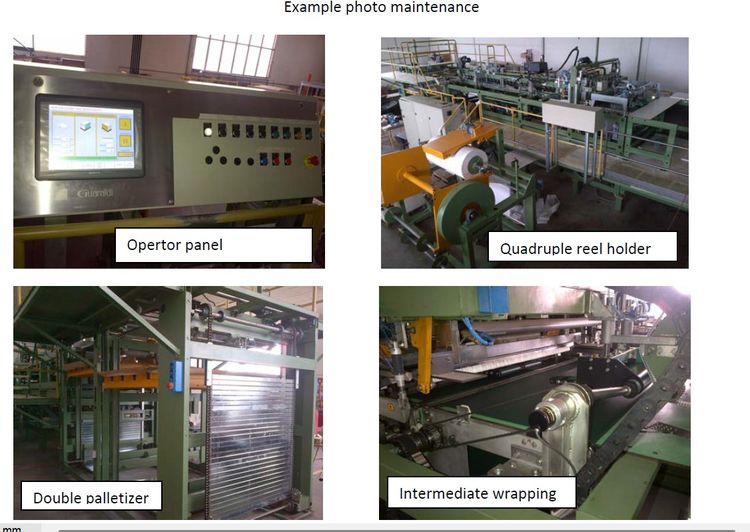

Current status: under maintenance in EU. Machine will be delivered overhauled and supplied with following service
included :
 PLC replacement of existing Siemens S5 to Siemens 1500 (upgrade)
 Operator panel replacement with new panel touch screen (upgrade)
 mechanically overhauled
 electrically overhauled
 pneumatically overhauled
 partial painting
 Technical documentation included as far as available

Possibility to have quoted in addition those services, depending on counry of re-installation: Installation supervising for installation, operation tests, operator training
Delivery : 5 months from order and receipt of 30% deposit ( excluded the months of august & december )
