1/1
Wupa PS 5.2
Ref :
2795240-4-AW
Condition :
Used
Manufacturer :
Wupa
Model :
PS 5.2
Year(s) :
1979
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

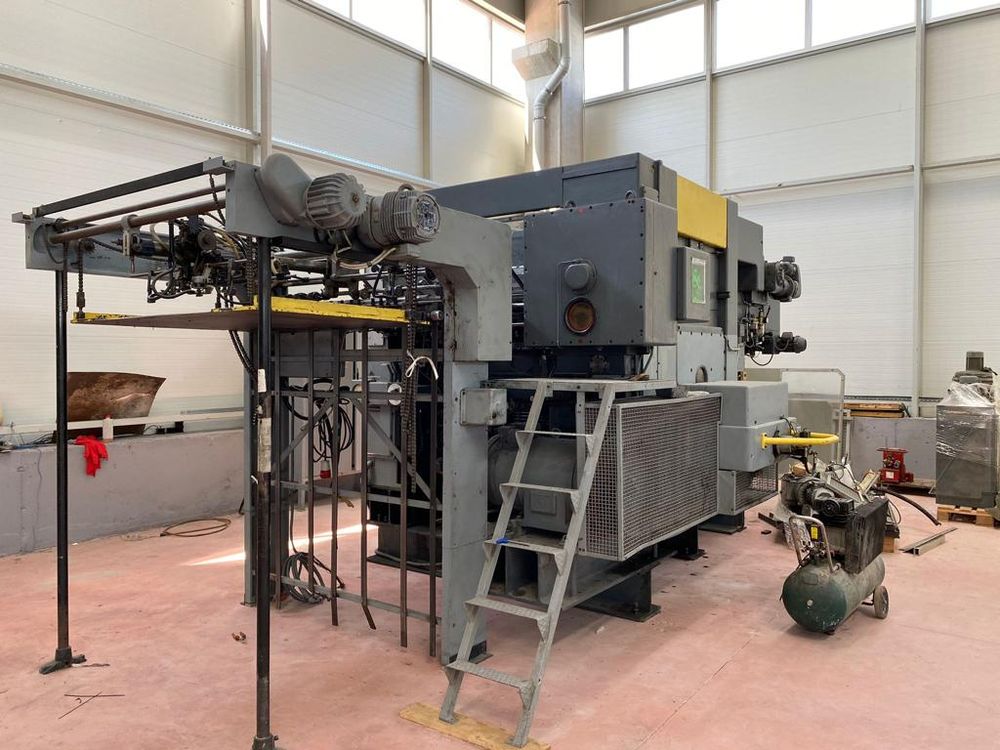

Automatic die-cutting and creasing machine
Maximum sheet size 920×1300 mm
Minimum size 560×1300 mm
Opening width within frame 920×1310 mm
Maximum die size 910×1300 mm
Maximum die-cutting area 900×1300 mm
Maximum gripping edge = 16 mm
Minimum gripping edge = 8 mm
Maximum card thickness 3 mm (also with micro-flute and flute zero)
Maximum compressed air pressure
Maximum stroke rate 5500/h
Infeed stack height 1100 mm
Outfeed stack height 1100 mm
Main motor power 18 kW
Main motor power consumption 17 kW, speed 5500 strokes/h.
Machine dimensions (L x W x H): 6835 mm x 3580 mm x 2690 mm.
Total weight of the machine including the insert approx. 30 t, weight of the machine without the insert approx. 29 t
