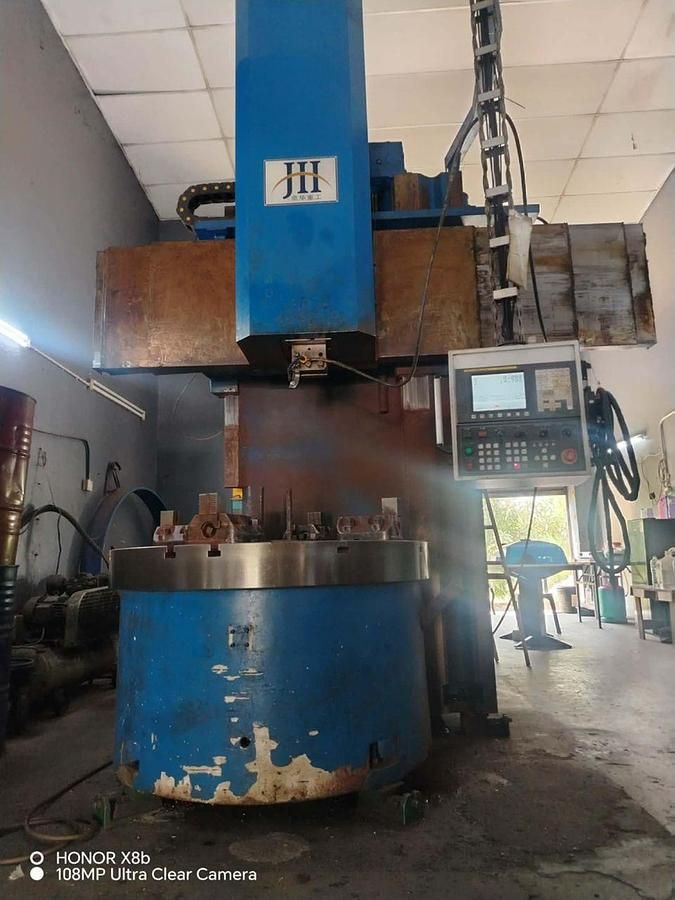

Wuxi JINGHUA CJK5116G Max. turning diameter: 1,600 mm
Ref :
2797472-3-AW
Condition :
Used
Manufacturer :
Wuxi
Model :
JINGHUA CJK5116G
Short Description :
Max. turning diameter: 1,600 mm
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
ASIA (South East)
ASIA (South East)
Rail head horizontal travel: 800 mm
Side head horizontal travel: 630 mm
Side head vertical travel: 980 mm
Rapid speed of tool post: 1,800 mm/min
Control: Fanuc Series 0i-TF
Working table diameter: 1,400 mm
Max. weight of workpiece: 8 t
Main motor power: 30 kW
Max. cutting force of rail head: 25 kN
Max. cutting force of side head: 20 kN
Max. torque of working table: 25 kN·m
Tool bar section height: 40 mm
Machine dimensions: 2,830 x 2,870 x 3,870 mm
