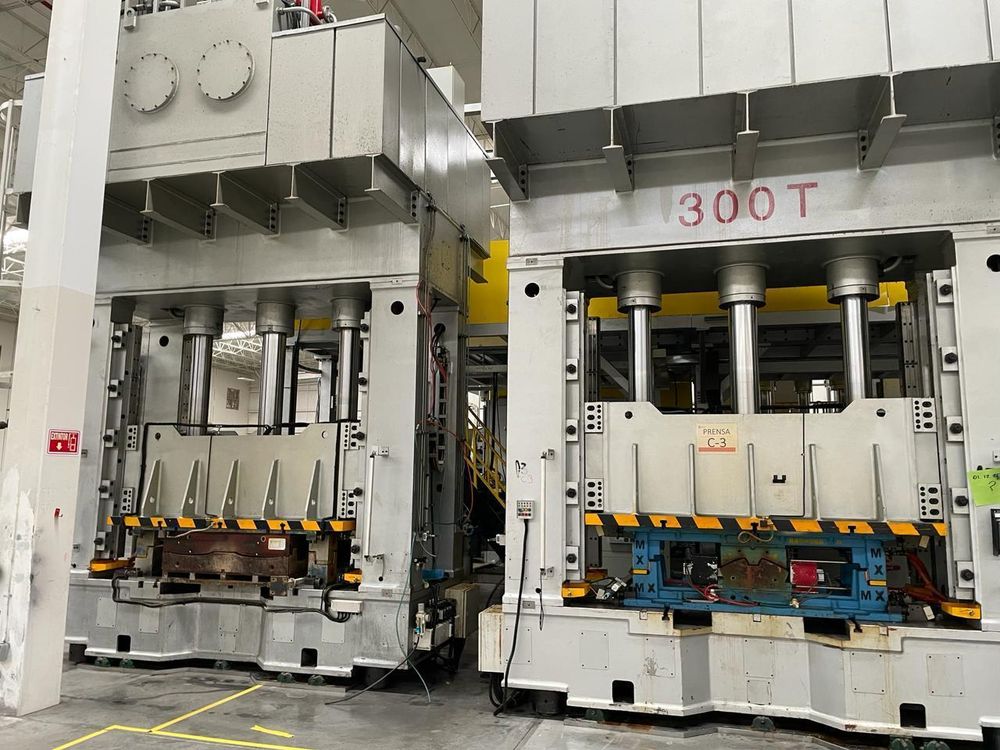

Wuxi LANLI Y28- 300T

Maximum Slide Stroke 1600 mm
Effective Table Dimensions 2300 x 1300 mm
Rapid Approach Speed 250-350 mm/s
Nominal Force 3000 KN
Maximum Working Pressure 20 Mpa
Opening Force 500 KN
Return Force 200 KN
Max Distance from Slide Underside to Table 1800 mm
Table Height Above Floor 760 mm
Slide Speed Rapid Down 250-350 mm/s
Slide Speed Slow Down/Pressing 15-30 mm/s
Slide Speed Rapid Return 350 mm/s
Height Above Ground 6675 mm
Machine Footprint 4050 x 3000 mm
Total Power 95.1 KW
