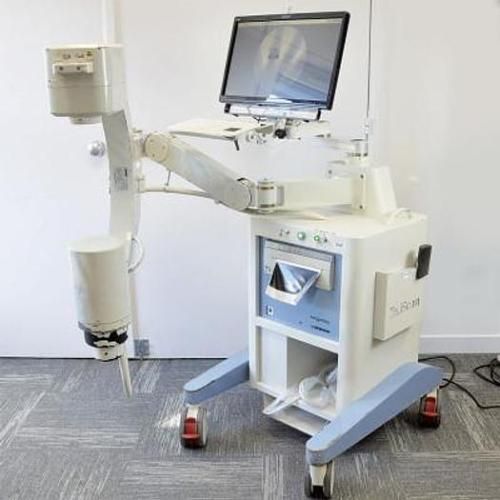

XIScan Serie 4400 Radiology Arch

Brand FM Control
Low exposure dose for patient and operator
Simple and intuitive touchscreen interface
Integrated positioning laser
Automatic patient dose report
Bilateral lateral control on the C-arm
Monochrome and digital thermal imaging system
Zoom, 360° image rotation, inversion and mirroring
Paper printing and DICOM transmission
Automatic session recording
Multifunction foot control
Medical keyboard with Cleanlock lock
Extended battery life thanks to UPS power supply
Full compatibility with DICOM hospital standards (Worklist, MPPS, Store)

Technical Details
Fixed anode X-ray tube
Maximum power: 40 to 70 kV (in 5 kV increments)
Current: 20 to 150 µA (in 5 µA increments)
Dual field of view: 4" (10 cm) / 6" (15 cm)
AERC system with Smart Dose automatic control
Acquisition resolution: 12 bits, high definition
Acquisition modes: still image, live image, video recording
Internal storage: > 100,000 images, up to 60 minutes of video
Supported formats: JPG, BMP, DICOM, AVI
23" EIZO medical touchscreen with anti-glare coating
Operating system: Microsoft Windows 10
Connectivity: Ethernet, USB 3.0, full DICOM
Integrated UPS with up to 50 minutes of battery life
Adjustable orbital and axial rotation, configurable horizontal/vertical movement
Weight and dimensions: compact for mobile use
Operating temperature range: 0 °C to 40 °C

Compatible Accessories
Multifunction foot pedal
Cleanlock medical keyboard
23" EIZO touchscreen
Integrated battery and UPS
EASY HANDLE positioning handles
Ethernet and USB 3.0 cables
DICOM-compatible medical printer
