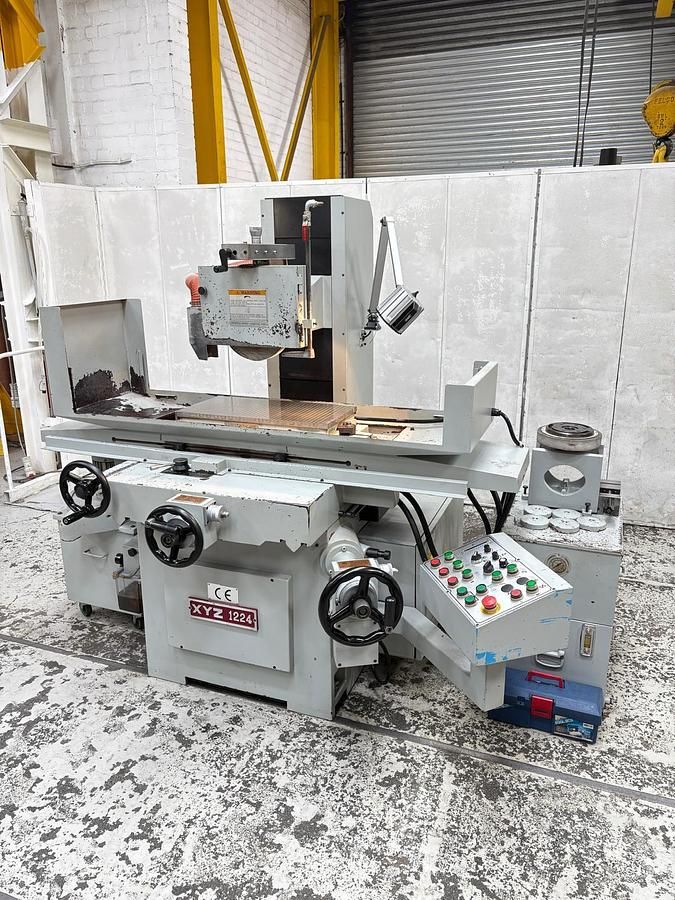

XYZ 1224

Table Size: 304 × 609 mm
Max Grinding Length: 609 mm
Max Grinding Width: 304 mm
Max Distance Table Surface to Spindle Centre: 508 mm
Longitudinal Travel: 660 mm
Magnetic Chuck Size: 304 × 609 mm
Table Speed: 5 – 25 m/min
Auto Cross Feed Increment: 0.1 – 10 mm
Spindle Speed: 3,000 RPM
Spindle Motor: 5 HP (3.7 kW)
Grinding Wheel Size: 355 × 38 × 127 mm
Floor Space Required: 3550 × 2550 mm
Machine Weight: 1,700 kg
Electromagnetic Chuck
2 Grinding Wheels with Flanges
Wheel Balancer Stand
Overhead Wheel Dresser
Coolant System
Dust Extraction
Toolbox
Machine Pads
Levelling Bolts
Low Voltage Light
