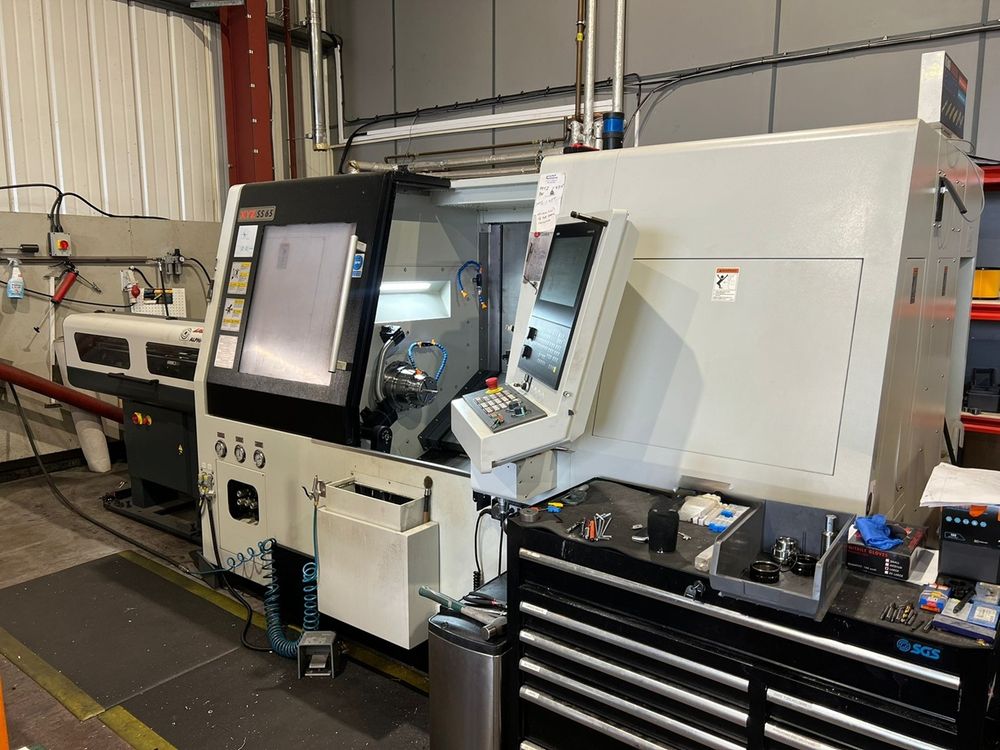

XYZ CNC CONTROL 4,000 rpm SS65 2 Axis

XYZ SS65
2023

Swing over bed 650 mm
Swing over cross slide 380 mm
Maximum turning diameter 380 mm
Maximum turning length 520 mm
Tool holder VDI 30 live

Y-axis travel ±50 mm (100 mm total)
Live tool maximum speed 5,000 rpm
Number of tool stations 12
Main spindle motor 16.5 kW (23 HP)
Main spindle maximum speed 4,000 rpm
Bar capacity 65 mm
Main spindle nose A2-6
Power chuck diameter 200 mm

Sub spindle motor 11 kW (15 HP)
Sub spindle maximum speed 5,000 rpm
Sub spindle hole diameter 52 mm
Sub spindle nose A2-5

Sub power chuck diameter 150 mm
Turning tool shank dimensions 20 x 20 mm
Boring bar diameter 40 mm
Rapid feed rate 24 m/min

X-axis ballscrew 32 mm x P10 x C3
Y-axis ballscrew 28 mm x P6 x C3
Z-axis ballscrew 2 mm x P10 x C3
Z2-axis ballscrew 32 mm x P10 x C3

Servo motor torque (X, Y, Z) 11/16 Nm
Positioning accuracy ±Sum
Repeatability accuracy ±2 µm
Coolant capacity 480 liters
Coolant pump delivery 135 L/min @ 2.5 bar
LNS Alpha barfeed
Swarf conveyor with skip
Selection of live and static tooling
80 mm Hainbuch collet chucks A2-5 and A2-6
2 Renishaw automatic toolsetting probes
C-axis for complex contouring with brake
Siemens 828 Shop Turn/ShopMill touchscreen control
Machine dimensions (with swarf conveyor) 4485 x 3135 x 1950 mm
Weight 5000 kg
