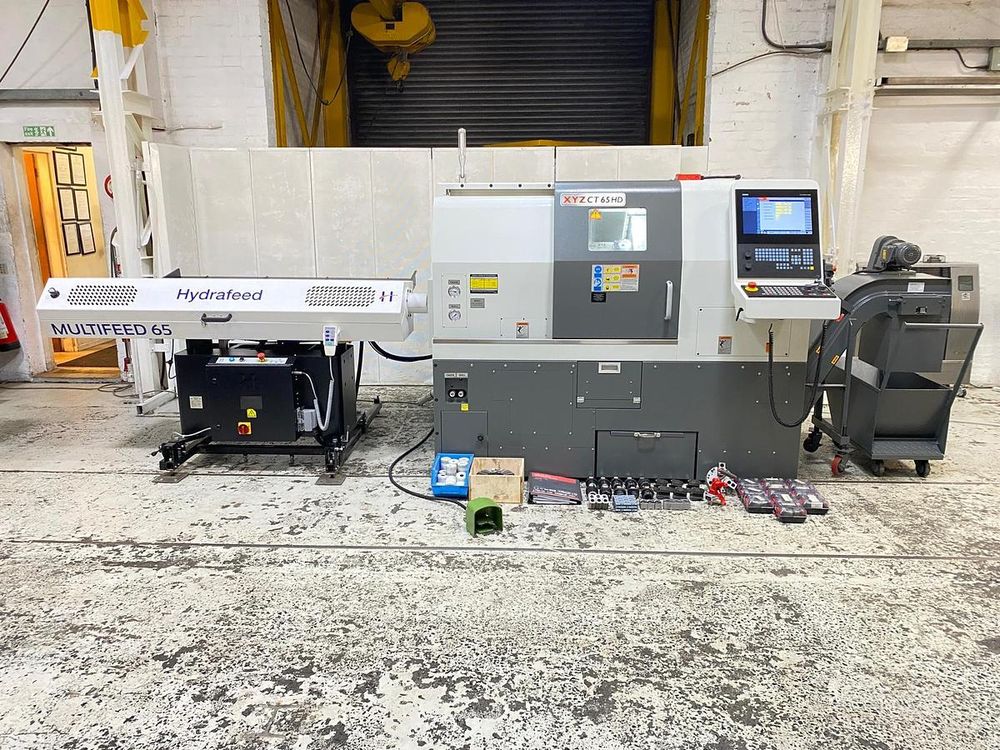

XYZ Control SIEMENS 828D ShopTurn 4000 rpm COMPACT TURN CT65HD 2 Axis
Ref :
2794238-3-MT
Condition :
Used
Manufacturer :
XYZ
Controller :
Control SIEMENS 828D ShopTurn
Spindle Speed :
4000 rpm
Model :
COMPACT TURN CT65HD
Nb Of Axis :
2 Axis
Year(s) :
2022
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis stroke 175 mm
Z-axis stroke 525 mm
Control SIEMENS 828D ShopTurn
12-station VDI turret
Automatic tool setting arm
Through tool coolant
Flood coolant system
Bar capacity 65 mm
Maximum swing 400 mm
Swing over carriage cover 260 mm
Maximum turned diameter 220 mm
Maximum turned length 510 mm
Spindle speed 4000 rpm
Spindle drive motor 17 kW / 23 HP
X-axis rapid traverse 20 m/min
Z-axis rapid traverse 20 m/min
200 mm hydraulic 3-jaw chuck
Hainbuch collet chuck
Hydrafeed Multifeed 65 bar feeder
Parts catcher
Swarf conveyor and bin
Machine size 3020 L x 2200 D x 2060 H mm
Machine weight 3600 kg
