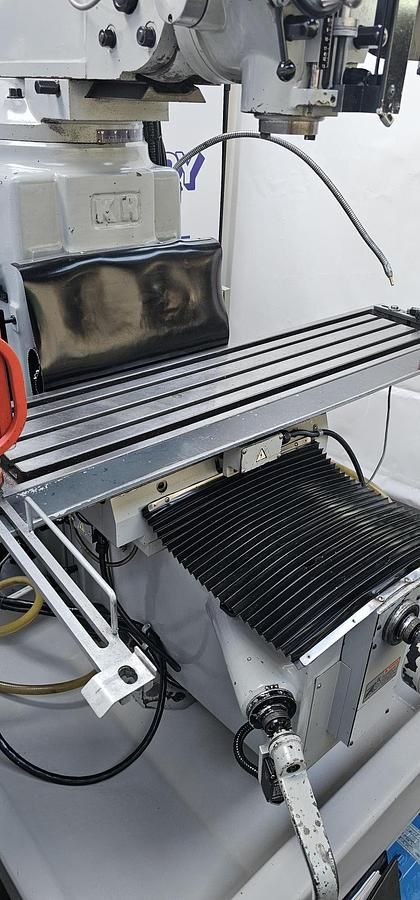

XYZ PROTO TRAK SMX 3000 CNC TURRET MILLING MACHINE 3600 rpm
Ref :
2785283-3-MT
Condition :
Used
Manufacturer :
XYZ
Model :
PROTO TRAK SMX 3000
Type :
CNC TURRET MILLING MACHINE
Spindle Speed :
3600 rpm
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X Axis Travel: 780 mm
Y Axis Travel: 410 mm
Z Axis Travel: 400 mm
Ram Travel: 450 mm
Interlocked Table Guards
Power Knee Elevation
Air Drawbar
Automatic Lubrication
Coolant System
Work Light
Swarf Tray
Spindle Speed Low Range: 70 – 460 rpm
Spindle Speed High Range: 500 – 3600 rpm
Spindle Taper: ISO 40
Spindle Motor Power: 3.75 kW
Head Tilt Left/Right: 90°
Head Tilt Front/Rear: 45°
Quill Travel: 127 mm
Quill Feed: 0.038 mm/rev
Quill Feed: 0.076 mm/rev
Quill Feed: 0.15 mm/rev
Throat Depth: 700 mm
Table Size: 1371 x 305 mm
Machine Weight: 1650 kg
