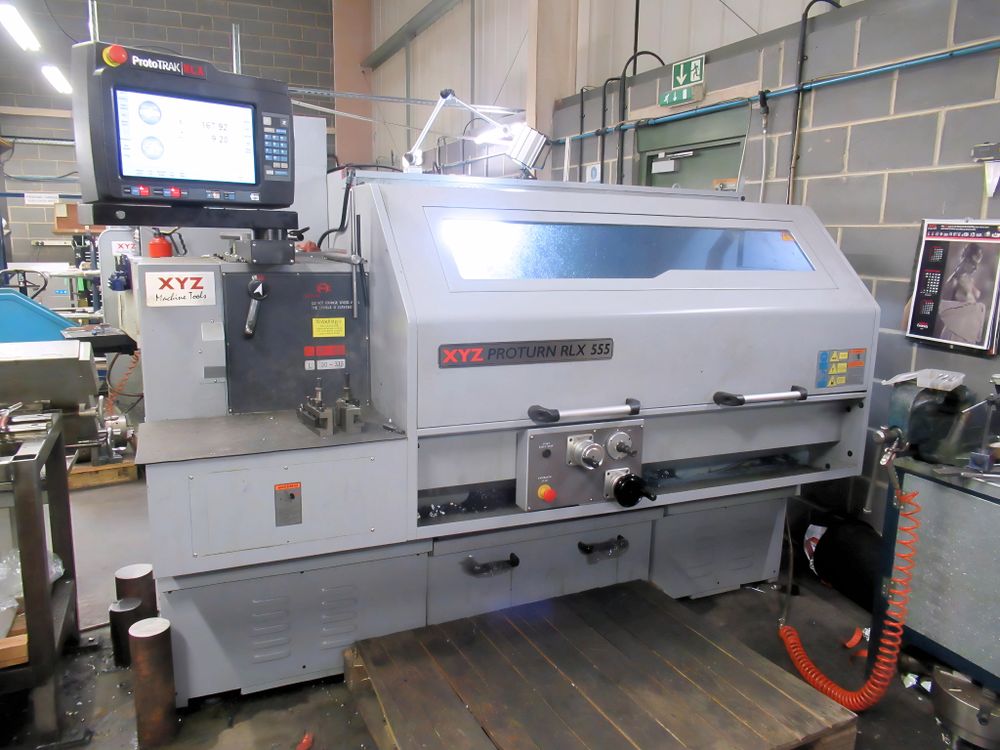

XYZ Prototrak RLX 1,800 rpm RLX 555 2 Axis
Ref :
2767302-3-GO
Condition :
Used
Manufacturer :
XYZ
Controller :
Prototrak RLX
Spindle Speed :
1,800 rpm
Model :
RLX 555
Nb Of Axis :
2 Axis
Year(s) :
2020
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
CNC control: Prototrak RLX
Spindle bore: 104 mm
Swing: 560 mm
Swing in gap: 780 mm
Swing over cross-slide: 350 mm
Maximum cutting length: 1,650 mm
Distance between centers: 1,000 mm
Spindle speed: 30–1,800 rpm
Spindle motor power: 11.2 kW
Spindle nose: D1-11
Tailstock quill diameter: 90 mm
Tailstock quill stroke: 160 mm
Tailstock taper: MT 5
Chuck: 3-jaw
Machine dimensions: 2,525 x 1,589 x 1,920 mm
Machine weight: 3,200 kg
Features / equipment
Coolant system
Drill holder attachment
Interlocked guards
Low-voltage light
Quick-change toolpost
Tailstock
