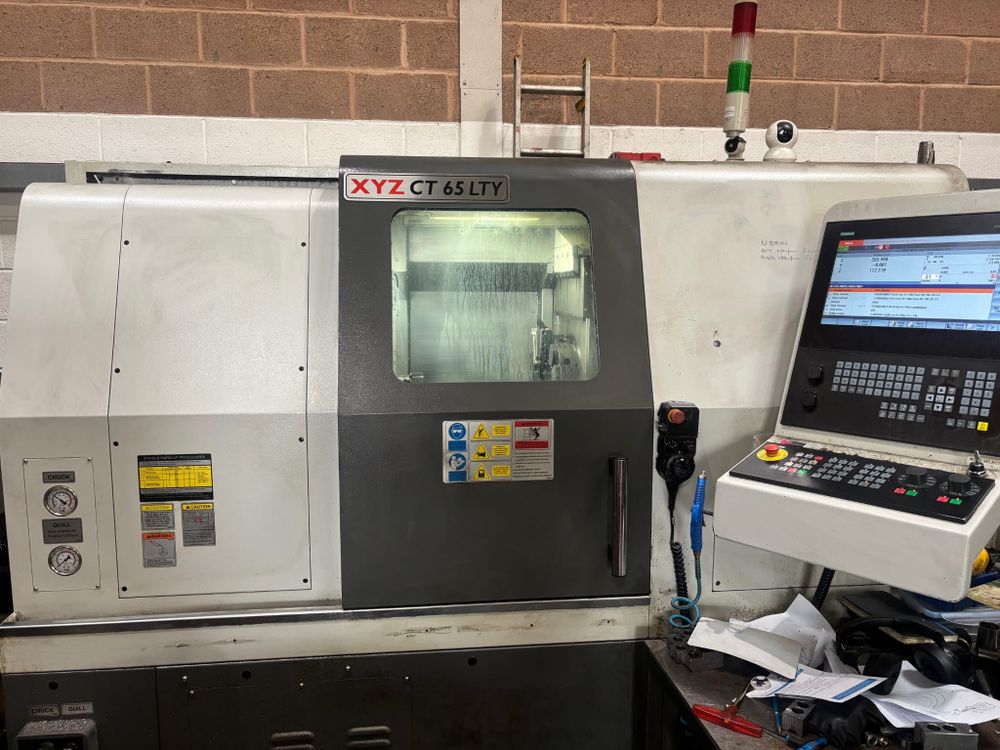

XYZ Siemens 828D 4000 rpm CT65LTY 4 Axis

3 jaw chuck
C axis
Milling
Interlocked guards
Low volt light
Parts conveyor
Remote hand wheel
Swarf conveyor
Tailstock
Tool setter
Y-axis

X axis travel: 220mm
Y axis travel: ±35mm
Z axis travel: 500mm
Rapid feedrates (X/Y/Z): 20 × 15 × 20 m/min
C axis: 0.001°
Control: Siemens 828D
Bar capacity: 65mm
Swing: 400mm
Swing over carriage: 320mm
Maximum cutting diameter: 220mm
Maximum cutting length: 490mm
Spindle speed: 4000 rpm
Spindle motor power: 11kW
Spindle nose: A2-6
Milling motor power: 4kW
Milling RPM: 4500 rpm
Chuck size: 200mm
Tool size: 20 × 20mm
Tooling configuration: VDI30
Turret positions: 12 station
Machine dimensions: 3250 × 2060 × 2000mm
Machine weight: 4400kg
Tailstock quill diameter: 75mm
Tailstock quill stroke: 120mm
Tailstock taper: MT #4
