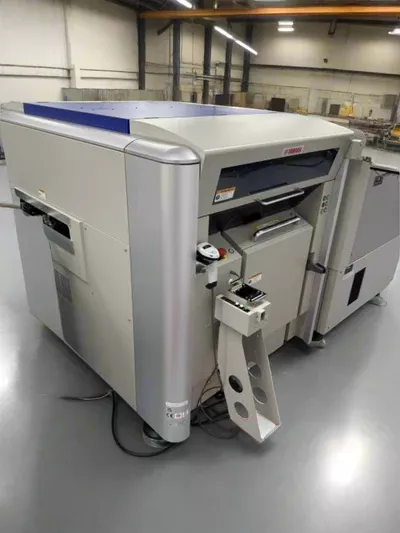

Yamaha S10 iPulse High Speed Pick and Place

DOM: 11/11/2021

Specifications:
Board thickness 0.4 – 4.8mm
Board flow direction Left to right (Std)
Board transfer speed Max 900mm/sec
Placement speed (12 heads + 2 theta) Opt. Cond. 0.08sec/CHIP (45,000CPH)
Placement accuracy A (μ+3σ) CHIP +/- 0.040mm
Placement accuracy B (μ+3σ) IC +/- 0.025mm
Placement angle +/- 180 degrees
Z axis control/ Theta axis control AC servo motor
Component height Max 30mm*1 (Pre-placed components: max 25mm)
Applicable components 0201mm – 120 x 90mm, BGA, CSP, connector, etc.
Component package 8 – 56mm tape (F1/F2 Feeders), 8 – 88mm tape
(F3 Electric Feeders), stick, tray
Drawback check Vacuum check and vision check
Board positioning Board grip unit, front reference, auto conveyor width adjustment
Component types Max 90 types (8mm tape), 45 lanes x 2
Transfer height 900 +/- 20mm

Machine dimensions, weight L1250 x D1750 x H1420mm, Approx. 1150kg
