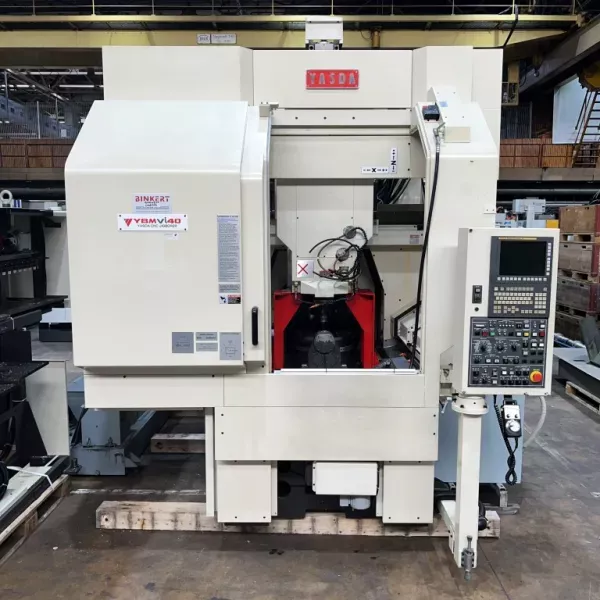

Yasda YBM Vi40 CNC jig boring machine 24,000 rpm

X-axis travel: 900 mm
Y-axis travel: 500 mm
Z-axis travel: 450 mm
Distance from table surface to spindle tip: 100 – 550 °
Turntable diameter: 400 mm
Pallet loading capacity: 200 kg
Table surface configuration: 44-M12 thread
C-axis rotation: 360°
B-axis tilt range: ±110°
Distance between tilt axis center and turntable: 0 mm
C-axis rotation speed: 100 rpm
B-axis rotation speed: 20 rpm
Rotary axis motor power: 4.2 kW
Tilt axis motor power: 4.5 kW
Spindle type: SA40-24,000-18.5
Spindle speed range: 100 – 24,000 rpm
Speed programming: Direct 5-digit S command
Number of spindle speed ranges: 1
Spindle taper bore: HSK-63A
Spindle bearing inner diameter: 65 mm
Rapid traverse (X/Y/Z): 20,000 mm/min
Feedrate (X/Y/Z): max. 5000 mm/min
C-axis speed: 100 rpm
B-axis speed: 20 rpm
Smallest input increment: 0.0001 mm/deg
Automatic tool changer: 60 tools
Tool selection method: Any selection
Tool shank type: HSK-63A
Max. tool diameter: 100 mm
Max. tool diameter (full setting): 70 mm
Max. tool length: 250 mm
Max. tool weight: 7 kg
Tool balance: Within G2.5
Machine dimensions: 3220 x 3885 x 3515 mm
Machine weight: 15,000 kg
