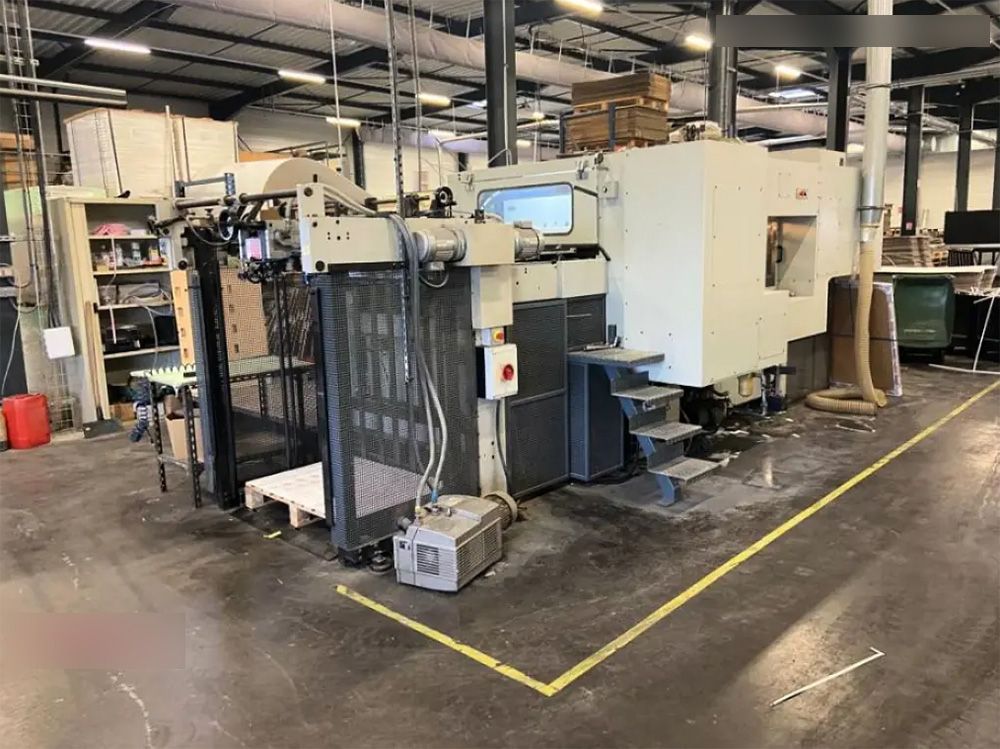

Yawa 1050E
EUROPE (Western and Northern)
• die cutting machine
• 2001 and installed in 2002
• sheet size maxi 1050 x 750 mm
• mini 450 x 370 mm
• max die cutting area 1040 x 730 mm
• die cutting form size 1120 x 760 mm
• minimum form size 400 x 330 mm
• working stocks 0,1 mm à 3 mm
• maximum speed 7500 feuilles/heure
• minimum gripper edge 8 mm
• tork limitation on gripper bars tansmission
• digital reading of pressure settings
• 2 form holding chases
• quick lock system for small form
• dual axel centering system
• 2 -5 mm cutting plate
• automatic stripping
• double action striping
• fast positionning of superior stripping chase with dual axel centering system
• dual axel centering system of stripping chase and board
• non stop delivery
• steel loading plate
• hight pile control by mechanical system
• platen angle position control
• touch screen operation control
