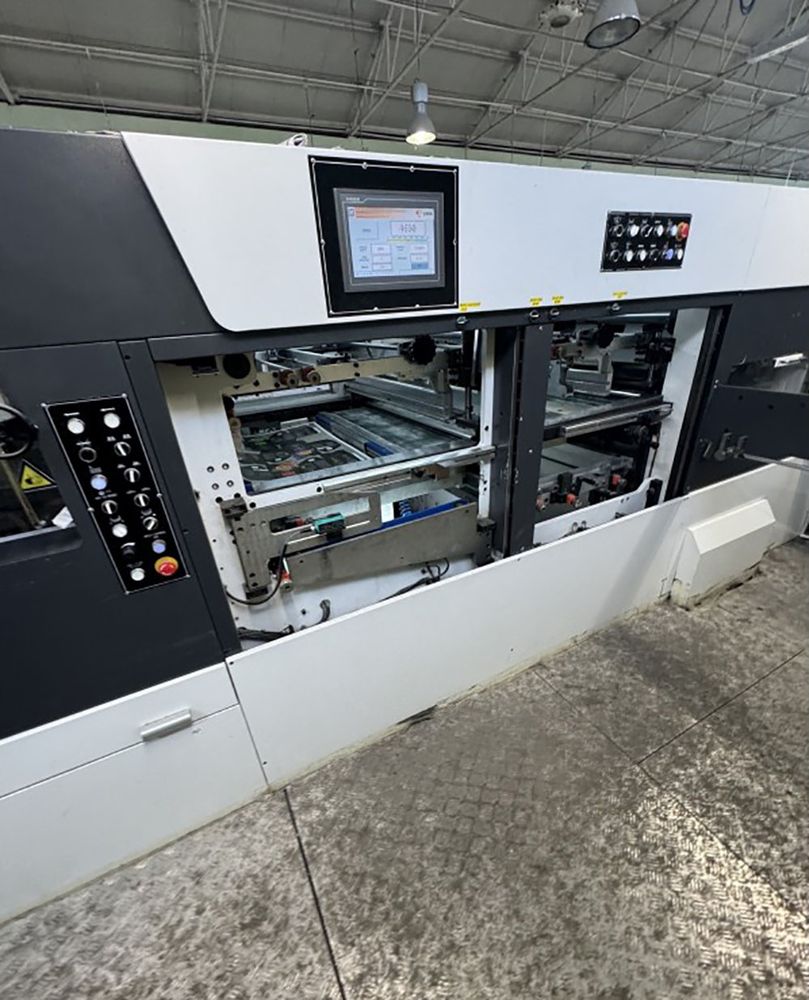

Yawa DS106

Die cutting machine
Sheet Handling:
Max. sheet size: 1060 × 760 mm
Min. sheet size: 400 × 350 mm
Stock range: Paper from ~90 g/m²; paperboard 0.2–1.5 mm; corrugated ≤4 mm (E, B flute)
Min. gripper edge: ~9 mm
Die Cutting
Max. die-cutting size: 1060 × 746 mm
Inner chase size: approx. 1120 × 760 mm
Max. pressure: ~260 tons
Steel rule height: 23.8 mm
Performance
Max. speed: ~6500–7500 sheets/hour
Main motor: ~15 kW
Total power: ~22–28 kW
Dimensions & Capacity
Feeder pile height: ~1200–1400 mm
Delivery pile height: ~1100–1200 mm
Net weight: ~21,000–22,000 kg

Features:
✅ Die cutting, stripping, and blank separation/blanking built-in
✅ PLC & servo control with HMI touchscreen
✅ Accurate gripper/side lay systems for precise register
✅ Non-stop pile changing (on some configs)
✅ CE certified (safety compliance)
