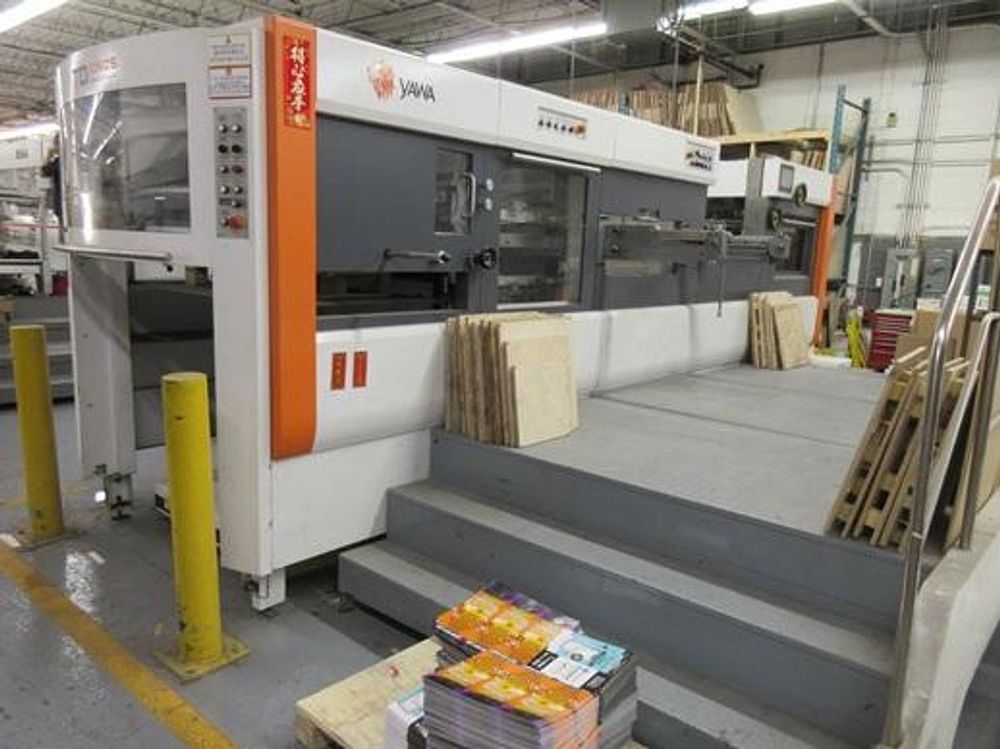

Yawa TD1060S

DIECUTTER
Maximum sheet size : 41.73” x 29.13” ( 1060 mm x 740 mm )
Minimum sheet size : 15.75” x 14.17” ( 400 mm x 360 mm)
Diecutting size : 40.94” x 28.74” (1040 mm x 730 mm)
Cutting force : 300 metric tons
Maximum production rate : 7500 sheets per hour
Processed materials : 90 to 2000 g/m2 and E & B flute
Machine voltage : 400 V / 18 kw / 32 Amp.

Equipment details :
• Elevated machine
• Prepiling device
• Manual non-stop feeder
• O.S. (operator side) pull guide and OOS (opposite operator side) pull guide
• One (1) upper cutting chase
• One (1) cutting plate
• Lower supporting plate
• Double action waste stripping station
• Stripping station with one set of upper and lower stripping frames with tooling
• Electronic operator display (Control Unit)
• Non-stop rack in the delivery
• Operator platform
Machine can be seen in production.
