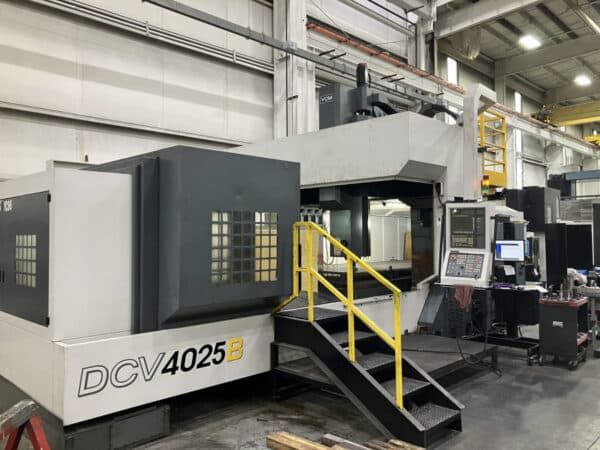

YCM DCV-4025B Bridge Mill 3 Axis

YCM DCV-4025B Bridge Mill
2012

CONTROL: MBX 200FB (FANUC 31i)
TABLE SIZE……………………………: 158″ x 94.5″
TABLE WEIGHT CAPACITY …………………: 44,092 LBS.
LONGITUDINAL TRAVEL (X)………………..: 160″
CROSS TRAVEL (Y)………………..: 98″
VERTICAL TRAVEL (Z)………………..: 40″
FEED RATE X, Y, Z …………………….: 472/591/591 IPM
CUTTING FEED RATE …………………….: 0.04~394 IPM
SPINDLE SPEEDS………………………..: TO 4500 RPM
SPINDLE DRIVE…………………………: 25/30 HP (18.5/22 kw)
SPINDLE TAPER…………………………: CAT 50
TOOL CHANGER …………………………: 120 ATC
DISTANCE BETWEENS COLUMNS………………: 107.9″
MAX. TOOL WEIGHT ……………………..: 44.1 Lbs.
MAX. TOOL DIMENSIONS ………………….: 4.92″ x 13.78″
DISTANCE BETWEEN SPINDLE NOSE & TABLE TOP..: 7.87~47.87″
GROSS MACHINE…………………………: 101,412 Lbs.

EQUIPPED WITH:
ELECTRICS-220/480
COOLANT THROUGH SPINDLE
CHIP CONVEYOR
CHILLER UNIT
ETHERNET
HIGH SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3 ROLLER TYPE GUIDE WAY FOR Y AXIS
