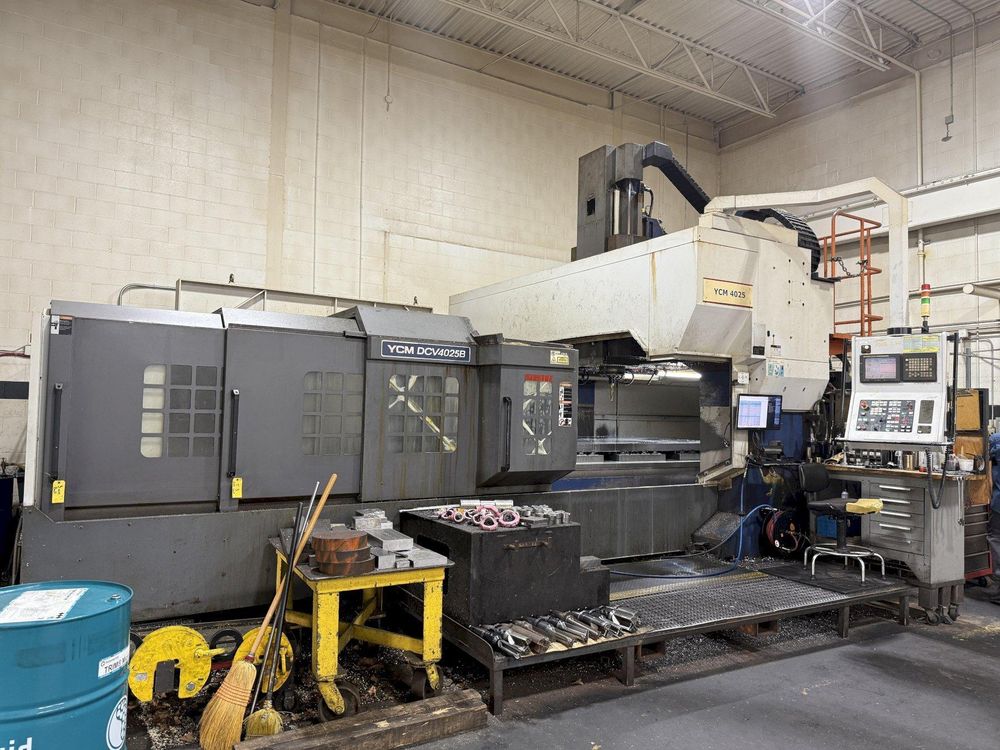

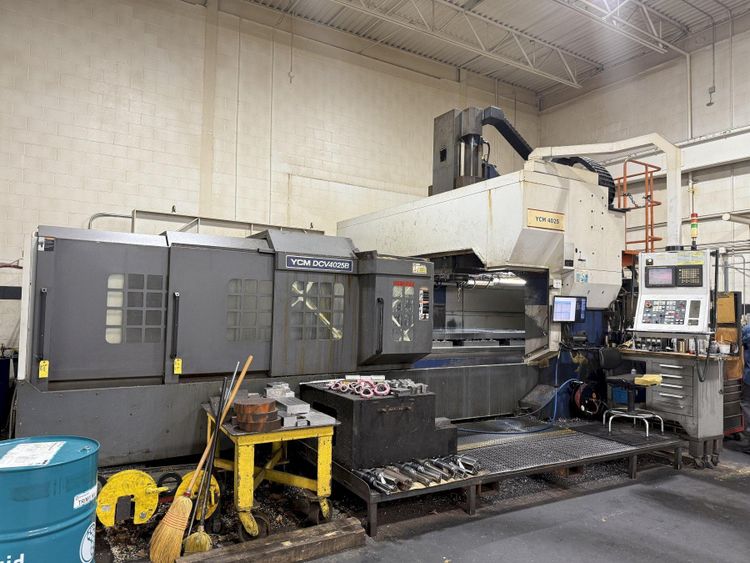

YCM DCV4025B 3 Axis

YCM DCV4025B
Year: 2008


Highlights:
-Spindle Thermal Compensation
-Marposs Measuring System
-Tecnomagnete Chuck System


CNC Controlyes
Control TypeFanuc18i-MB
Table Size161.4" x 94.5"
Max Table Load44,092 lbs
Distance Between Columns107.9"
Max Distance Spindle To Table Top7.87" x 47.87"
X-Axis Travel160"
Y-Axis Travel98"
Z-Axis Travel30"
Spindle TaperCAT 50
Spindle Speed10,000 rpm
Spindle Motor (HP)30 hp
ATC Capacity120
Machine Weight101,412 pounds

Equipped With:
Fanuc 18i-MB CNC Control
Chip Blaster Unit
Chiller Unit
Chip Conveyor
Ethernet
High Speed Machining
Data Server
Hardened & Ground Box Way Z-Axis
3 Roller Type Guide Way for Y Axis
Tool Selection Random Method
Spindle Thermal Compensation
3/60/220-480V
Marposs Measuring System
Tecnomagnete Chuck System
