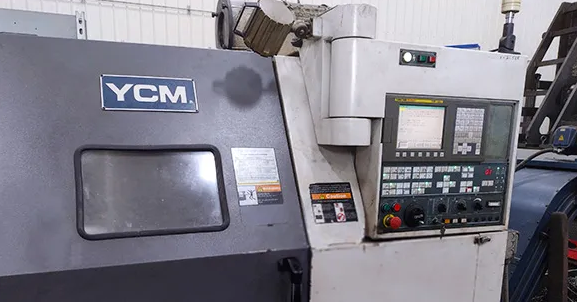

YCM Fanuc 3500 RPM GT-250B 2 Axis

X Axis Travel: 6.89" / +0.79"
Z Axis Travel: 20.2"
X Axis Rapid: 787 IPM
Z Axis Rapid: 945 IPM

Control: Fanuc
Swing Over Bed: 21.6"
Swing Over Carriage: 16.5"
Max Turning Diameter: 13.7"
Distance Between Centers: 27.1"
Max Turning Length: 20.2"

Spindle Speed Range: 45 – 3500 RPM
Spindle Horsepower: 20 HP
Spindle Nose: A2-8 ASA
Spindle Through Hole: 3.46"

Chuck Diameter: 10"
Number of Tools: 10

Equipped With:
Fast 10 Position Servo Turret
Non-stop Bi-directional Tool Indexing Servo Turret
Tailstock with Programmable Quill
Lift-up Style Chip Conveyor
8.4" LCD Color Monitor
10" Hydraulic Chucking System
