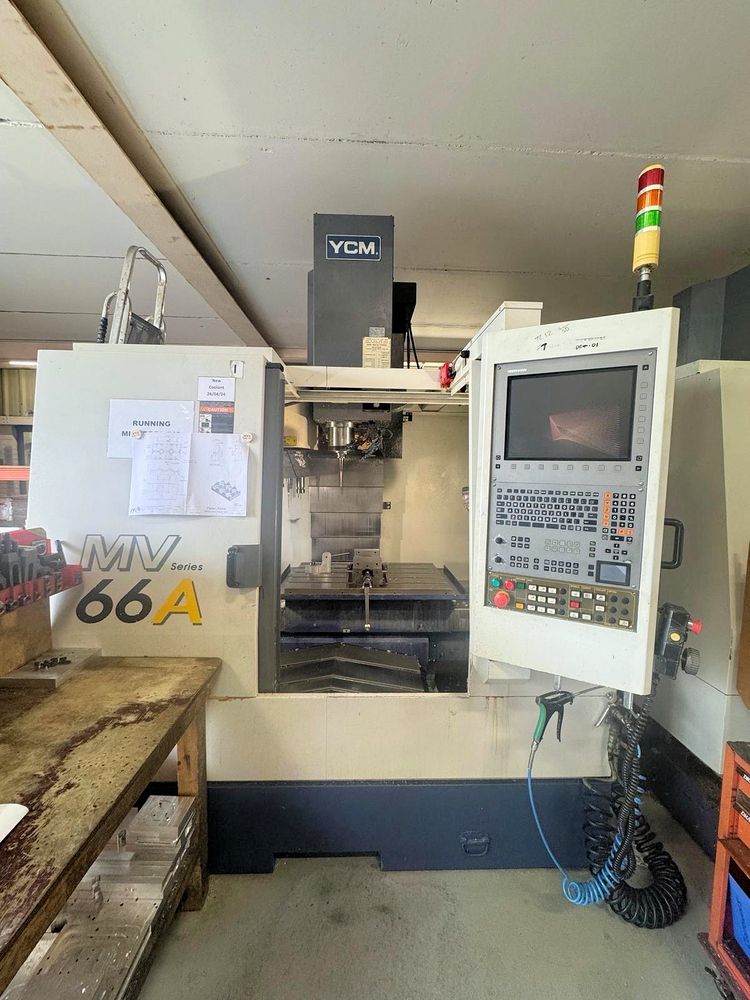

YCM Supermax MV66A 3 Axis

YCM Supermax MV66A
2007

Control Heidenhain iTNC530
Coolant system
Interlocked guards
Low voltage light
Cutting speed 10 m/min
Distance spindle centre to column 527 mm
Machine dimensions 2300 x 2675 x 2750 mm
Machine weight 5000 kg
Min distance table to spindle 120 mm
Max distance table to spindle 680 mm
Maximum workpiece weight 500 kg
Rapid feedrates X 24 m/min
Rapid feedrates Y 24 m/min
Rapid feedrates Z 20 m/min
Spindle motor power 11 kW
Spindle speed 45 - 8000 rpm
Table size 840 x 560 mm
Tool change capacity 20 stations
Tool size BT40
Traverses X 660 mm
Traverses Y 510 mm
Traverses Z 560 mm
