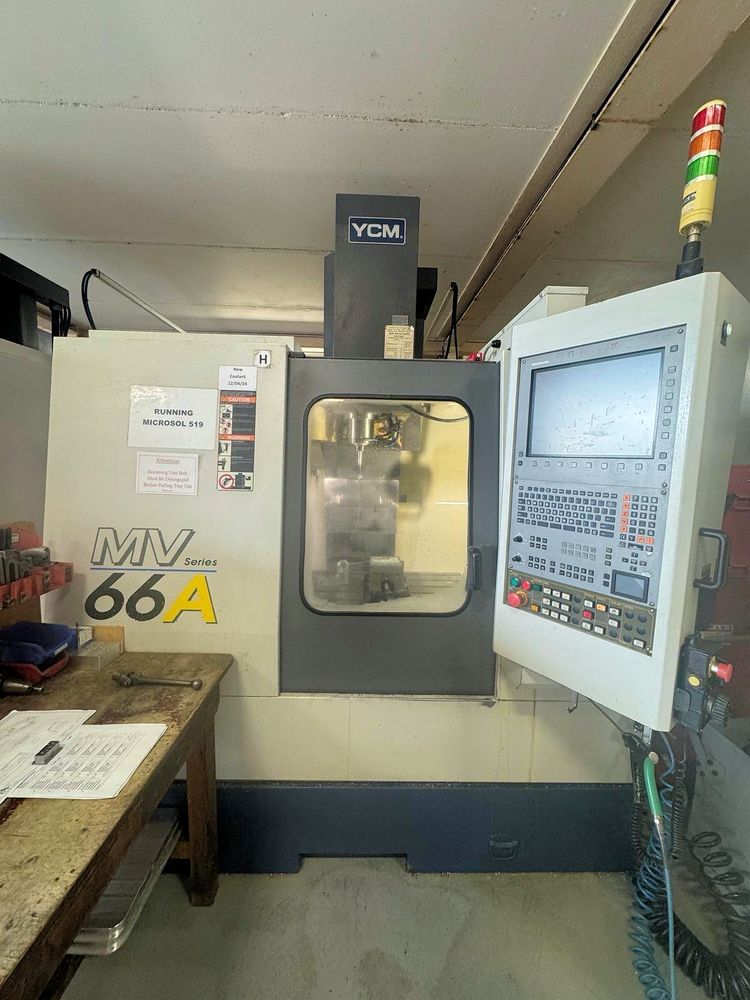

YCM Supermax MV66A 3 Axis

YCM Supermax MV66A
2008

Control: Heidenhain iTNC530
Cutting speed: 10 m/min
Distance from spindle center to column: 527 mm
Machine dimensions: 2300 x 2675 x 2750 mm
Machine weight: 5000 kg
Distance from table to spindle: 120–680 mm
Maximum workpiece weight: 500 kg
Rapid feedrates XYZ: 24 x 24 x 20 m/min
Spindle motor power: 11 kW
Spindle speed range: 45–8000 rpm
Table size: 840 x 560 mm
Tool change capacity: 20 stations
Tool type: BT40
Traverse XYZ: 660 x 510 x 560 mm
Coolant system
Interlocked guards
Low voltage work light
