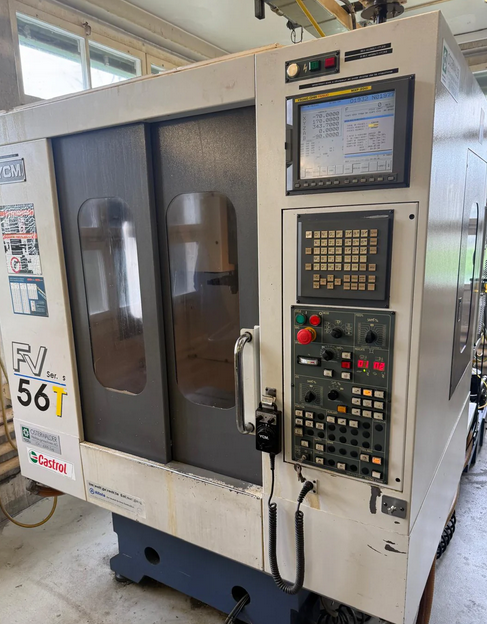

YCM YEONG CHIN YCM FV-56T 3 Axis

YEONG CHIN FANUC MXP 200i control

X-Axis Travel 560 mm
Y-Axis Travel 410 mm
Z-Axis Travel 450 mm
4-axis simultaneous capability
B-axis 4th axis table (optional/installed)

Spindle nose BT30
Spindle speed 45–15000 rpm
Spindle power 3.7 / 5.5 kW

Feed rate 10000 mm/min
Rapid traverse X/Y 36 m/min
Rapid traverse Z 24 m/min

Tool changer 16 positions
Tool diameter max 63 mm
Tool diameter with free pockets 100 mm
Tool length 200 mm
Tool weight max 4 kg
Tool change time 1 s

Table size 700 x 420 mm
T-slots 3
T-slot width 14 mm
T-slot pitch 100 mm
Max table load 300 kg

Distance spindle nose to table 110–560 mm

Machine dimensions 2630 x 1620 x 2240 mm
Machine weight 2800 kg

Coolant system
Spindle blow-out device
Automatic central lubrication
Status light
