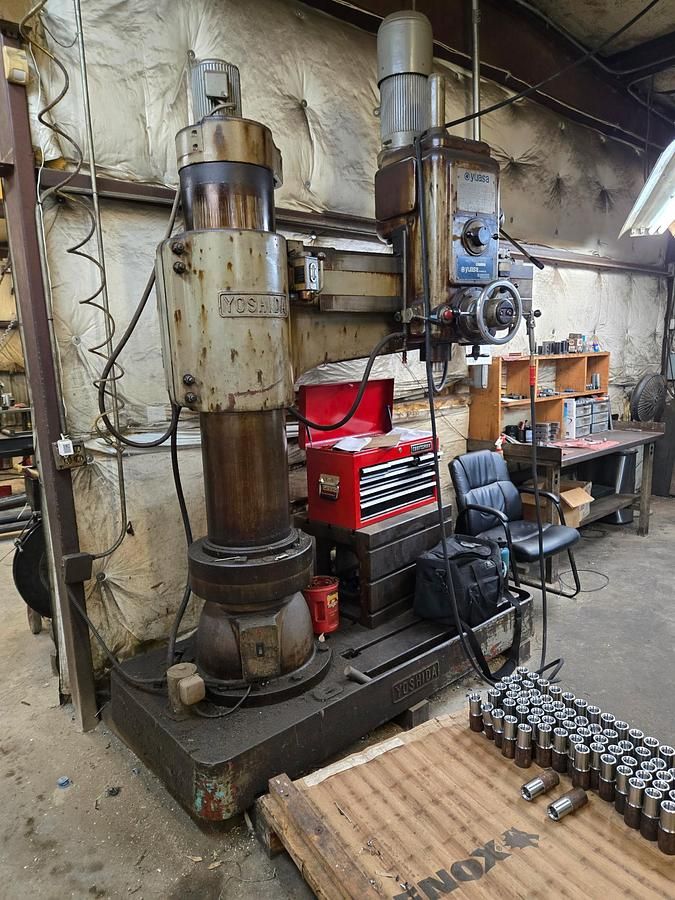

Yoshida YR5-115 1800 rpm

YOSHIDA YR5-115

Max distance column to spindle end 45-1/4"
Min distance column to spindle end 11-1/16"
Max distance base to spindle end 50-13/16"
Min distance base to spindle end 15/16"
Drilling capacity in steel 2"
Tapping capacity in steel 1-7/8"
Boring capacity in steel 2-3/4"
Column diameter 12-5/8"
Horizontal traverse of spindle end 33-7/8"
Vertical travel of arm 24-3/8"
Spindle taper No. 5 MT
Spindle speeds 40 to 1800 rpm
Number of spindle speeds 12
Spindle stroke 11-3/4"
Spindle feeds 0.002 to 0.040 IPR
Number of spindle feeds 9
Base plate size 7-1/2" x 33-7/8" x 74-13/16"
Working surface size 27-3/4" x 43-5/16"
Table size 17-3/4" x 19-11/16" x 25-5/8"
Spindle drive motor 5 HP
Arm elevating motor 1.5 HP
Clamping motor 0.5 HP
Coolant pump motor 1/6 HP
Electrics 220V, 3-phase, 60 Hz
