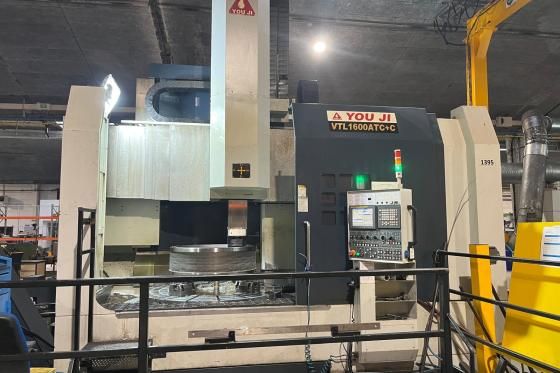

You Ji VTL1600ATC+C Max. turning diameter: 2000 mm

Horizontal movement support: 1015 mm
Stroke ram left: 800 mm
C-axis: 360000 °
Control: FANUC 18i-TB
Single column
Maximum turning height: 1200 mm
Table diameter: 1600 mm
Table load: 8000 kg
Spindle speed: 250 rpm
Main motor power: 45 kW
Driven tooling BT-50
Driven tooling speed: 2400 rpm
Live tool power: 11 kW
ATC: 16 positions
4 heavy duty jaws
Box slideway structure
Chip conveyor
Oil chiller
Coolant system
Automatic lubrication
Machine length: 4500 mm
Machine width: 5500 mm
Machine height: 5800 mm
Machine weight: 25000 kg
