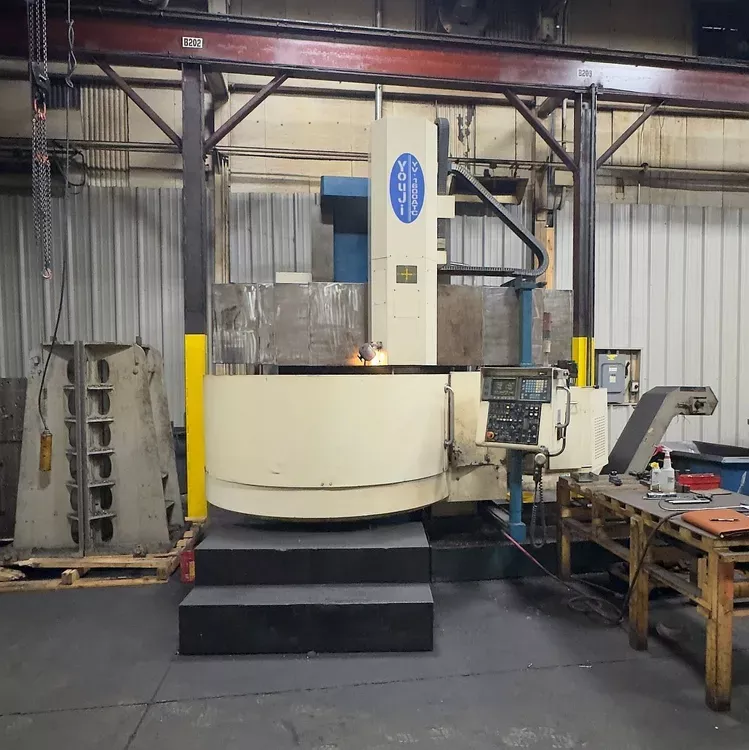

You Ji YV 1600 ATC Table diameter 63″

YOU JI YV 1600 ATC
1999

Control CNC (FANUC 0T)
Table diameter 63″
Maximum swing 78.74″
Maximum turning diameter 70.866″
Maximum cutting height 47.24″
Z-axis (vertical ram travel) 35.433″
X-axis (horizontal ram travel) 62.008″
Y-axis (cross rail vertical travel) 31.496″
Ram-to-table max distance 60″
Rail travel 31.5″
Table load capacity 17,637 lbs
Main spindle motor power 49–60 HP
Optional spindle motor upgrade up to 100 HP
Spindle/table speed range 1–250 RPM
Tool magazine (ATC) 12–24 tools
Machine weight 60,600 lbs
Overall machine dimensions 220″ × 134″ × 152″
Ram and cross rail rebuilt in 2015
Gibs rebuilt in 2015
