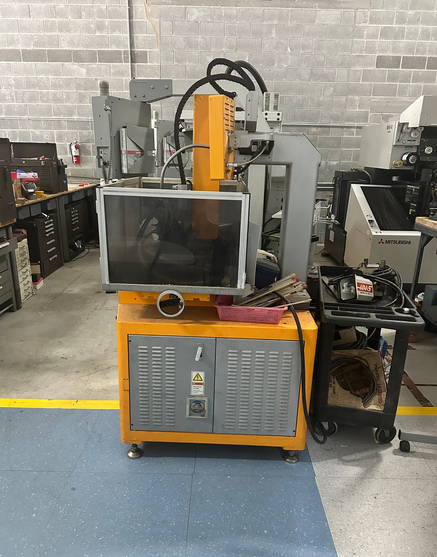

YOUGAR YGS-43Z

Type: Small Hole Drilling EDM
Travel X: 400 mm
Travel Y: 300 mm
Travel Z: 400 mm
Travel W: 345–400 mm
Control: CNC
8-axis control
Table size: 910 × 650 mm
Workpiece height: 350 mm
Workpiece weight: 200–500 kg
Electrode diameter: 0.3–3.0 mm
Electrode diameter (with special AEC): 0.1–3.0 mm
Electrode length: 400–500 mm
Power supply: Single-phase 220 V, 3 kW, 50–60 Hz
AEC automatic electrode changer: 20 positions
Internal water tank
Ion sensor
Filtration system
Pull-out tank design
Granite table
Adjustable control panel
Stepping motors on X/Y/Z/W axes
1 μm linear scales
Ball screws
Automatic Z-axis return
Micro discharge technology
Machine dimensions: 914 × 1,030 × 2,200 mm
Machine weight: 600–700 kg
