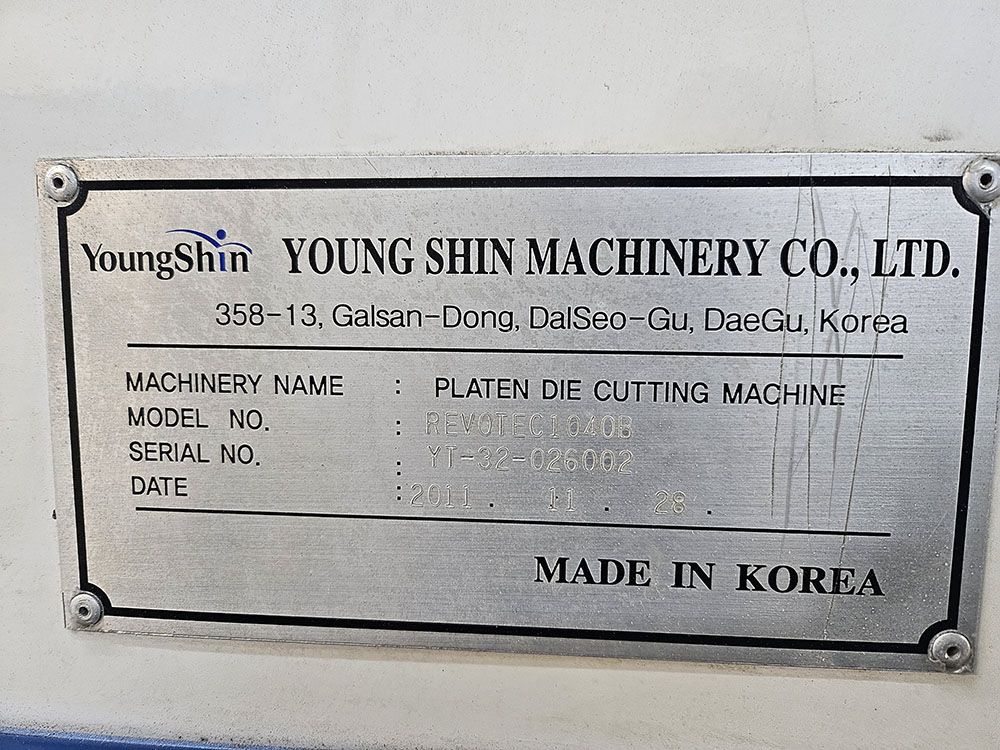

Young Shin Revotec 1040B
ASIA (North East)
Type: Automatic Flatbed Die Cutter
Application: Folding carton and corrugated board die cutting
Sheet Size:
Maximum Sheet Size: 1040 × 740 mm
Minimum Sheet Size: approx. 440 × 340 mm
Maximum Cutting Size: approx. 1040 × 730 mm
Minimum Gripper Margin: 8 mm
Performance:
Maximum Cutting Pressure: approx. 300 tons
Maximum Speed: 7,200 sheets/hour (depending on material and job)
Material Thickness:
Paper / Carton Board: 0.1 – 1.5 mm
Corrugated Board: up to approx. 4.0 mm (E / B flute)
Machine Data :
Power Requirement: approx. 21 kW
Machine Weight: approx. 17 – 19 tons
Features :
Automatic feeder and delivery system
Non-stop feeding and delivery
Knuckle-type cutting system for stable pressure
Touchscreen control panel
Stripping and blanking section
