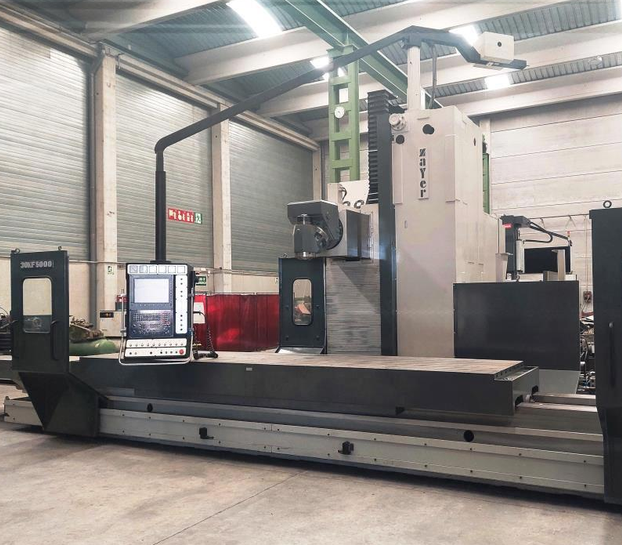

Zayer 30 KF-5000 3000 RPM

X-axis travel: 4710 mm
Y-axis travel: 1508 mm
Z-axis travel: 2013 mm
Control: HEIDENHAIN TNC 426
Table size: 5000 × 1000 mm
Maximum table load: 10,000 kg
Spindle taper: ISO 50
Spindle speed: 35–3000 RPM
Spindle power: 37 kW
Feedrate: 6–5000 mm/min
Rapid traverse: 15,000 mm/min
Machine dimensions: 12.2 × 7.1 × 4.86 m
Machine weight: 32,000 kg
45° automatic milling head
Automatic head positioning
Simultaneous rotation of both head bodies
Coolant system
Chip conveyor
