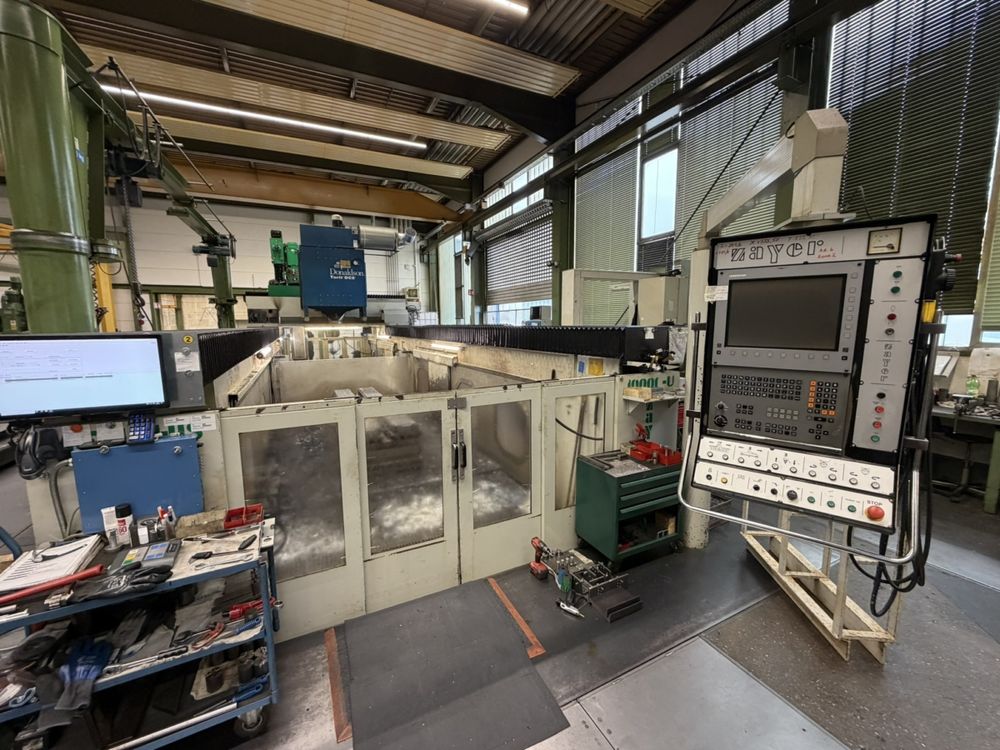

Zayer Memphis 10000 U 6000 rpm

Ref : 2802282-3-MT

Condition : Used

Manufacturer : Zayer

Model : Memphis 10000 U

Spindle Speed : 6000 rpm

Spindle Size :

Year(s) : 2002

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis travel: 10011 mm
Y-Axis travel: 1960 mm
Z-Axis travel: 1112 mm
Rapid travel X/Y/Z: 30000 mm/min
Feeds: 20–20000 m/min

Control: Heidenhain TNC 430 M
Control hours: 51524 h
Program hours: 45858 h
Positioning accuracy: 0.010 mm
Repeatability: 0.005 mm
Tool changer: 100 positions
Milling head swiveling: 360°
Distance spindle to table: 1291 mm

Spindle drive: 37 kW
Spindle speed range: 35–6000 rpm
Tool taper: ISO 50 (AD 50)

Table size: 9500 x 2000 mm
Table load: 20000 kg
Distance between columns: 2800 mm

Coolant capacity: 1000 l
Pressure: 20–25 bar
Machine weight: 20000 kg
