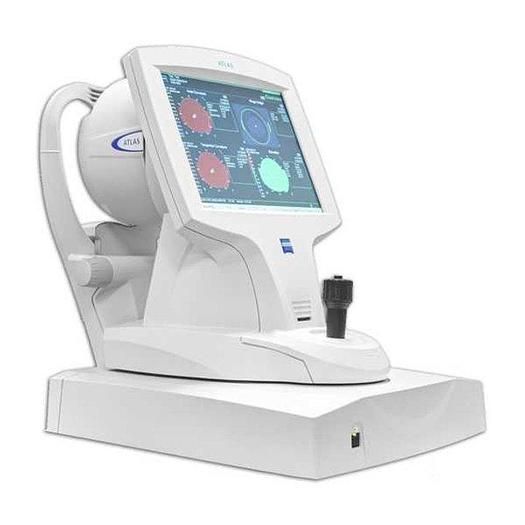

ZEISS Atlas 9000

The Zeiss Atlas 9000 Corneal Topographer Features:
The Atlas System has been proven to deliver the clinical accuracy that
your practice requires. The all-in-one system combines a suite of
unique technologies and is simple and efficient for virtually any operator to use.
The result is a new level of confidence in every exam and for every patient.

With applications including contact lens fitting, pathology detection and management,
and selection of aspheric IOLs, the Atlas 9000 is the right choice for
reliable real-world results, every time.

All pre-owned inventory from Marco Lombart is meticulously refurbished, tested,
and re-calibrated by the factory-trained technicians at Enhanced Medical Services (EMS).
All pre-owned and demo products are subject to availability. Please contact us for
details. Allow up to 4 weeks for delivery.

FEATURES
Proven Placido Disk Technology
Patented Cone-of-Focus™ Alignment System and Arc-Step Algorithm deliver
sub-micron elevation accuracy
22-ring Placido disk optimized to avoid ring crossover, which means reliable results for
a wide range of patients
Long, comfortable 70 mm working distance minimizes focusing error found
in “small cone” systems
SmartCapture™ Image Analysis Helps Your Staff Get it Right the First Time

SmartCapture analyzes 15 digital images per second during alignment and
automatically selects the highest quality image
Next-generation image processing provides more repeatable, reliable results,
even in difficult cases
Less dependence on operator technique means greater efficiency and
fewer repeat exams
Ergonomic Design Ideally Suited for You and Your Patient

Unique chinrest positions patient for easy image capture and wide peripheral coverage
and automatically detects OD/OS
Non-visible Placido ring illumination increases corneal coverage and patient comfort
Compact system with integrated computer makes examination effortless
Intuitive Analysis & Reporting

Color scale – Customize colors and scales for detailed corneal assessments
Topography map – Display as curvature, elevation, corneal wavefront,
even image simulations. Landmarks such as corneal apex, pupil contour,
and pupil center help explain the impact on visual acuity
Data – Automatically display preferred parameters such as simulated keratometry,
shape factor, eccentricity, and HVID (white to white)
Cursor value – Obtain the exact value at any point on the map
Versatility that is Visible

OD/OS Comparison- Quickly assess both eyes for corneal health and refraction
Automatic Pupillometry and HVID Measurement – Enhance contact lens fitting and refractive surgery planning with scotopic and photopic pupil images and HVID.
Corneal Wavefront Overview – Educate patients about higher-order aberrations and
simulate visual acuity.
Corneal Wavefront Zernike Analysis – Measure corneal spherical aberration to
optimize the selection of aspheric IOLs.
Gain Clinical Insight & Confidence

Track corneal health for improved patient care
Screen for improved pathology detection and management
