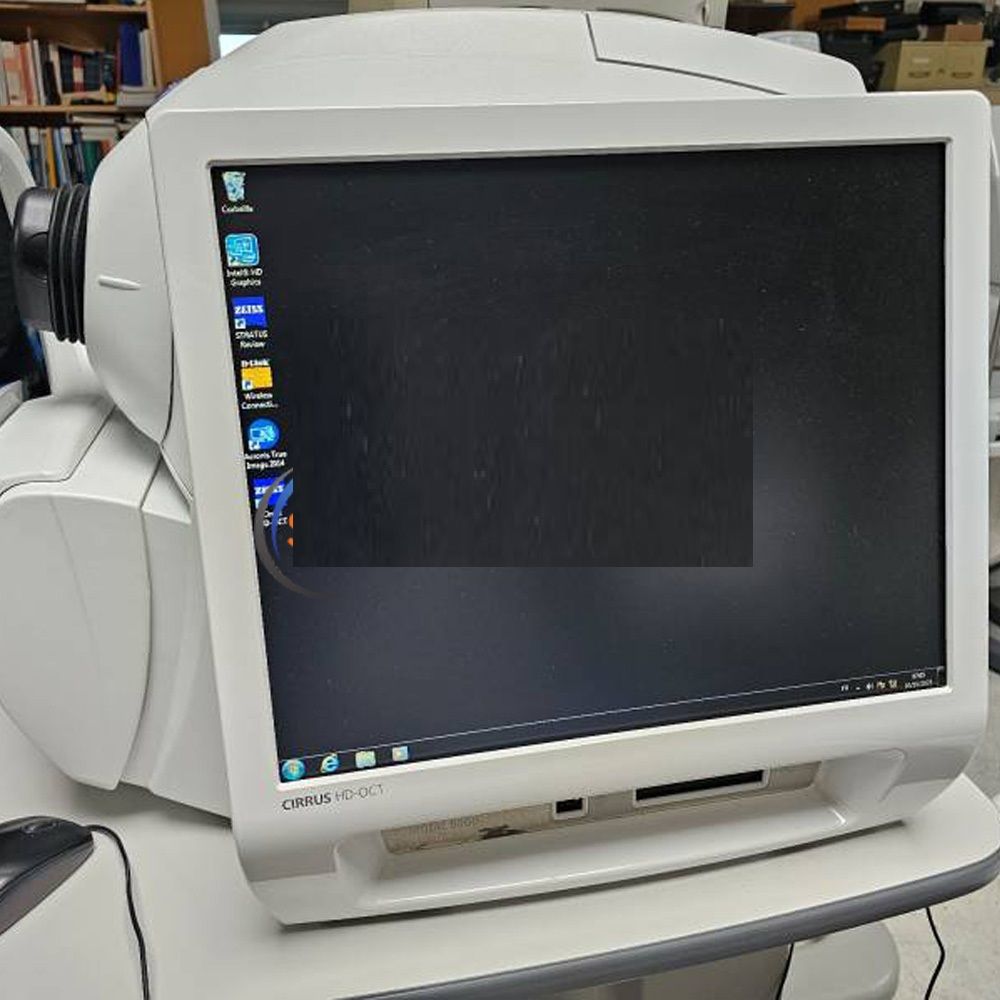

ZEISS Cirrus HD-OCT 5000

Zeiss Cirrus HD-OCT 5000 with Angioplex.
Advancing Smart OCT for Anterior Segment,
Glaucoma and Retina: Anterior Segment Premier Module, PanoMap Wide-Field Display,
Smart HD Scans and En face report.

Technical Specifications
Fundus Imaging
Methodology Line scanning ophthalmoscope (LSO)
Live fundus image During alignment and during OCT scan
Optical source Superluminescent diode (SLD), 750 nm
Field of view 36 degrees W x 30 degrees H
Frame rate > 20 Hz
Transverse resolution 25 µm (in tissue)

OCT Imaging
Methodology Spectral domain OCT
Optical source Superluminescent diode (SLD), 840 nm
Scan speed 27,000 - 68,000 A-scans per second
A-scan depth 2.0 mm (in tissue), 1024 points
Axial resolution 5 µm (in tissue)
Transverse resolution 15 µm (in tissue)

Iris Imaging
Methodology CCD camera
Resolution 1280 x 1024
Live iris image During alignment

Electrical and Physical
Weight 36 kg (80 lbs)
Dimensions of instrument (L x W x H) 65 x 46 x 53 cm (26 x 18 x 21in)
Dimensions of table (L x W) 99 x 56 cm (39 x 22 in)
Fixation Internal, external
Internal fixation focus adjustment -20D to +20D (diopters)
Electrical rating (115V) Single Phase, 100–120V~ systems: 50/60Hz, 5A
Electrical rating (230V) Single Phase, 220–240V~ systems: 50/60Hz, 2.5A

Internal Computer
Operating system/processor Windows® 7, 4th generation i7 Intel® processor
Memory 16 GB
Hard drive/internal storage ≥ 2 T
> 200,000 scans
Display Integrated 19“ color flat panel display
USB ports 6 ports
