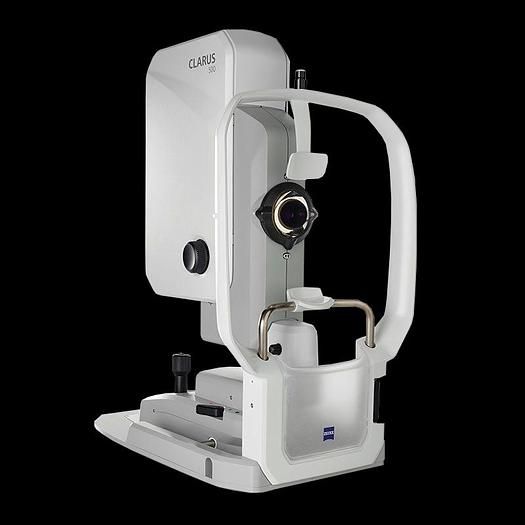

ZEISS Clarus 500

The advent of widefield retinal imaging has shown us that
indications of disease are often located in the far periphery of the retina.
CLARUS™ 500 is the next generation fundus imaging system from ZEISS that
provides True Color and high-resolution across an
entire ultra-widefield image.

Specifications
Imaging Modes
Field of View(measured from the center of the eye)
Light Sources
Automatic Operations
Acquisition Speed
True Color (with Red, Green and Blue channel separation)

Autofluorescence-Gree
Autofluorescence-Blue
Infrared reflectance
External eye image (ocular surface)
Stereo
133º Widefield (one image)

200º Ultra-widefield (two images)
up to 267º Montage (up to six images)

Resolution 7.3 μm
Pupil Diameter 2.5 mm (minimum)
Working Distance 25 mm (patient’s eye – front lens)
Compensation for ametropia – 24 D to + 20 D continuous

Red LED, 585–640 nm
Green LED, 500–585 nm
Blue LED, 435–500 nm
Infrared laser diode, 785 nm

Auto-focus
Auto-gain
AutoMontage
Auto-laterality

Live IR Preview, 10 frames/second
Image Capture, ≤ 0.2 seconds
