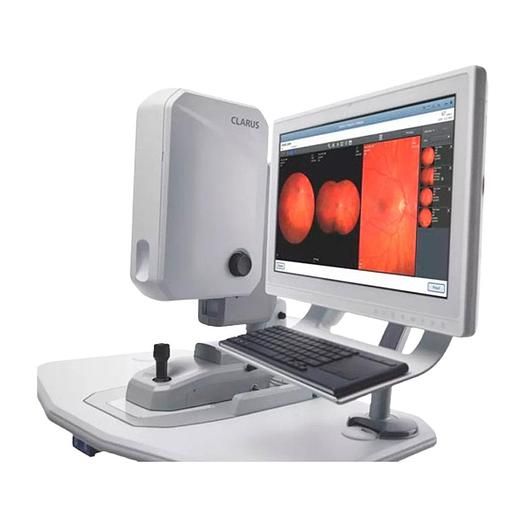

ZEISS Clarus 700

The advent of widefield retinal imaging has shown us that
indications of disease are often located in the far periphery of
the retina. CLARUS™ 700 is the next generation
fundus imaging system from ZEISS that provides True Color
and high-resolution across an entire ultra-widefield image.

Specifications
Imaging Modes
Field of View(measured from the center of the eye)
Light Sources
Automatic Operations
Acquisition Speed
True Color (with Red, Green and Blue channel separation)
FA, FAF, ICG
Autofluorescence-Gree
Autofluorescence-Blue
Infrared reflectance
External eye image (ocular surface)
Stereo
133º Widefield (one image)
200º Ultra-widefield (two images)
up to 267º Montage (up to six images)
Resolution 7.3 μm
Pupil Diameter 2.5 mm (minimum)
Working Distance 25 mm (patient’s eye – front lens)
Compensation for ametropia – 24 D to + 20 D continuous
Red LED, 585–640 nm
Green LED, 500–585 nm
Blue LED, 435–500 nm
Infrared laser diode, 785 nm
Auto-focus
Auto-gain
AutoMontage
Auto-laterality
Live IR Preview, 10 frames/second
Image Capture, ≤ 0.2 seconds
