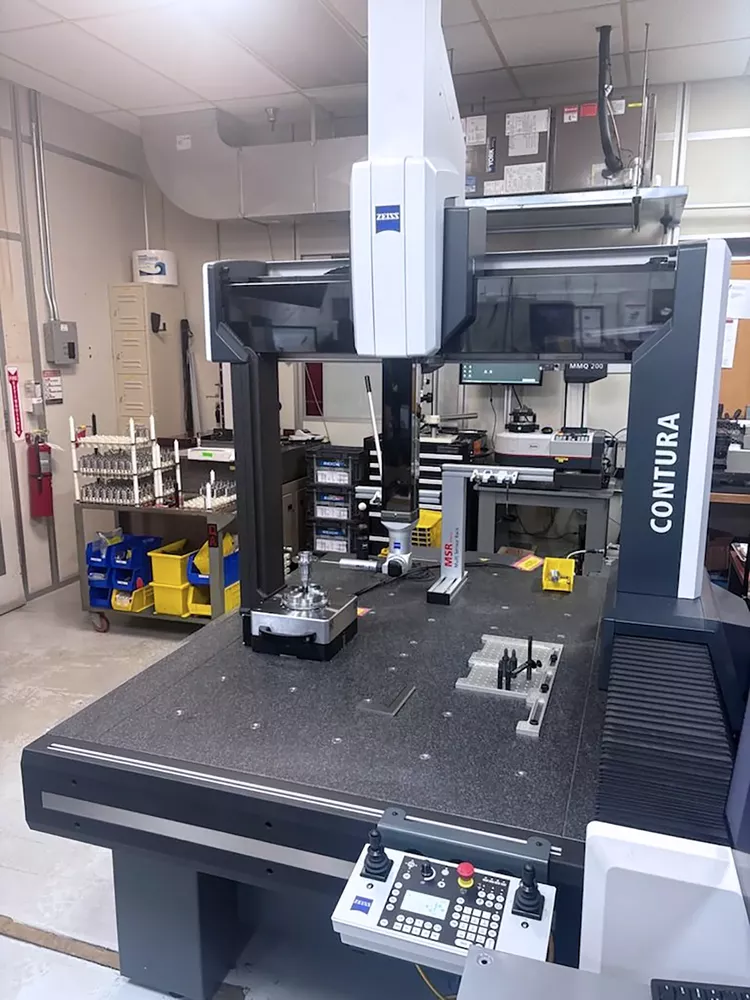

ZEISS Contura 9/12/6

ZEISS Contura 9/12/6
2022

Measuring volume X-axis: 900 mm
Measuring volume Y-axis: 1200 mm
Measuring volume Z-axis: 600 mm
Table height: 700 mm
Table width: 1581 mm
Table length: 2200 mm
Maximum workpiece length: 1650 mm
Maximum workpiece width: 1027 mm
Maximum workpiece height: 660 mm
Maximum workpiece weight: 1200 kg
PC-based Integrated Scanning Control (ISC) with C99M controller
Glass ceramic scales on all 3 axes
Integrated passive vibration damping
Air dryer with connection kit
Rotary table package with 300 mm faceplate and 3-jaw chuck kit
ID encoded RDS to VAST XXT adapter plate
RSH214 reference sphere holder with 30 mm diameter sphere
One VAST XXT TL3 adapter plate with extension
One VAST XXT TL3 adapter plate with embedded ID chip
3-position rack for holding VAST XXT TL1 or TL3 adapter
27" high-definition monitor
Software CALYPSO basic package
