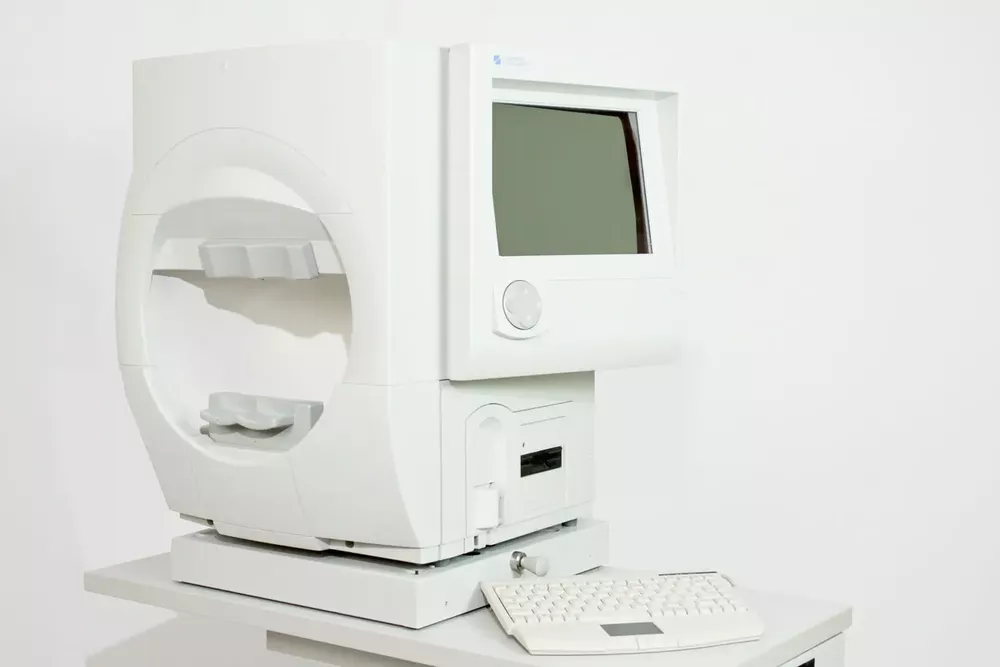

ZEISS HFA 740i

Features:
Heijl/Krakau blind spot monitor
Video eye monitor
Gaze tracking
Remote video eye monitor capability
Operator interface

Touch Screen CRT with Keyboard Stimulus
White-on-white
Red- or blue-on-white
Blue-on-yellow (SWAP) – Option
General testing features

Stimulus sizes – Goldman I-V
Foveal threshold testing
User-defined test storage

Software features
Glaucoma Hemifield test (GHT)
Glaucoma Progression Analysis (GPA)
STATPAC 2-single field analysis
Serial field overview
Networking (i model only)
Printer

Printrex thermal printer, table mounted
Data storage, retrieval and analysis
Hard drive – 40 GB
Magneto-optical disk drive – Option

Threshold Visual Fields in as Little as 2 Minutes
SITA sensitivity, reproducibility & accuracy has been shown in
clinical testing when using the Zeiss 740i Perimeter

Diagnostic Precision
STATPAC 2 – Single & Multiple Field Analysis is a standard feature on
the Zeiss 740i Perimeter. STATPAC, the language of perimetry,
compares results to proprietary age normative and glaucoma databases

Improved Reliability
The Zeiss 740i Perimeter also offers patented fixation monitoring including,
Krakau Blind Spot Monitoring, Video Eye Monitor, Gaze Tracking and
Remote Video Eye Monitor capability
Social Security Disability testing, Monocular, Binocular, and Custom Testing
are standard features on the Zeiss Humphrey 740i, while Kinetic Testing is
an option on the Zeiss 740i, providing the widest range of
testing protocols on any perimeter

Early Glaucoma Detection
The Zeiss 750i, 750, 745i, and 745 Perimeters all offer SITA-SWAP software,
which reduces blue-yellow threshold test time to just 4-6 minutes,
providing a clinically practical tool for early detection of glaucoma.
The SITA-SWAP software is standard on the Zeiss 750i Perimeter,
and the Zeiss 745i Perimeter, and available as an option on the
Zeiss 750 Perimeter, and the Zeiss 745 Perimeter

Gold Standard
Over 40,000 Zeiss Humphrey Perimeters worldwide including the Zeiss 750i,
745i, 740i, 720i, 750, 745, 740, 735, and the Zeiss 720 Perimeter Visual Field Analyzer

Operator Friendly & Patient Friendly
The Zeiss 740i Perimeter offers a touch screen, featuring on-screen menus
to simplify and expedite instrument operations. The Zeiss 740i Perimeter is
also wheelchair accessible and an ergonomic design allows maximum
comfort for all patient body types

Practice & Patient Friendly
The Zeiss 750i, 745i, 740i, and the 720i Perimeters include networking
software which automates Visual Field Analysis by connecting directly to
your office information system
Touch-screen and menu-driven interface simplifies operation
The Zeiss 740i Perimeter offers agronomic design for maximum comfort,
access and versatility

Complete Archiving System
The Humphrey Field Analyzer II “i” Series including the Zeiss 750i, 745i,
740i, and the 720i, all contain a hard drive, and Magneto-optical drive

Advanced Analysis
Zeiss Humphrey GPA Glaucoma Progression Analysis software identifies
clinically significant progression automatically
Pattern Deviation Plots identify localized field loss typical of glaucoma,
minimizing ocular media effects such as cataracts
