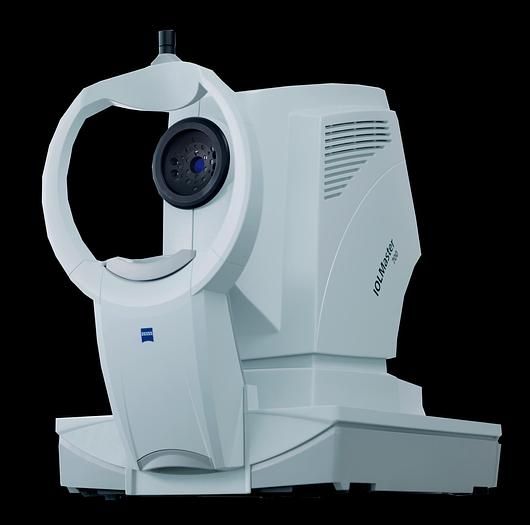

ZEISS IOLMaster 700

The IOLMaster 700 device is a combined biometry instrument for
the visualization of eye structures and acquisition of data of
the human eye required for the calculation of
the intraocular lens to be implanted.

Measurement range - Axial length 14 – 38 mm
Measurement range - Corneal radii 5 – 11 mm
Measurement range - Anterior chamber depth 0.7 – 8 mm
Measurement range - Lens thickness 1 – 10 mm (phakic eye) 0.13 – 2.5 mm (pseudophakic eye)
Measurement range - Central corneal thickness 0.2 – 1.2 mm
Measurement range - White-to-white 8 – 16 mm
SD of repeatability - Axial length 5 μm
SD of repeatability - Corneal radii 0.09 D
SD of repeatability - Cylinder > 0.75 D, axis 3.8°
SD of repeatability - Anterior chamber depth 7 μm
SD of repeatability - Lens thickness 6 µm
SD of repeatability - Central corneal thickness 2.5 µm
SD of repeatability - White-to-white 111 µm
IOL calculation formulas Barrett Suite: Barrett Universal II &
Barrett TK Universal II*, Barrett toric & Barrett TK toric*,
Barrett True K & Barrett True K with TK Haigis Suite: Haigis,
Haigis-L, Haigis-T Hoffer® Q Holladay 1 and 2 SRK®/T

Interfaces
ZEISS EQ Workplace
ZEISS VERACITY Surgery Planner
ZEISS EQ Mobile
ZEISS FORUM eye care data management system
ZEISS computer-assisted cataract surgery system
CALLISTO eye (via USB & FORUM)
Data interface for electronic medical record (EMR) /
patient management systems (PMS),
Holladay IOL Consultant software and PhacoOptics® Data export to
USB storage media Ethernet port for network connection and
network printer
