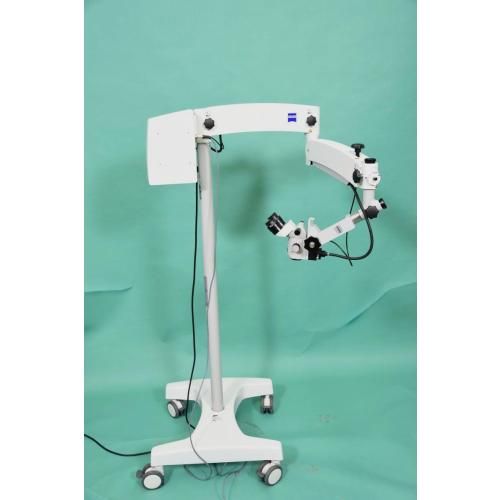

ZEISS OPMI 1 FR Pro Surgical Microscope

Options :
ZEISS OPMI 1 FR Pro, mobile examination/surgical microscope with 4 lockable castors.
Stand dimensions: 60 x 60 cm, height 175 cm, 10x eyepieces, suitable for
spectacle wearers, 45° angled binocular tube.
Zoom minimum 0.4, maximum 2.5, adjustable with step switch, focal length of tube 170, working distance 200 mm, field of view in eyepiece: 60 mm minimum zoom,
10 mm maximum zoom, magnification approx. 3.4-21.3x.
Illumination 100W halogen, continuously adjustable, incl. colour filter.
The focus is electrically adjustable by means of a foot switch, second hand

Features
Compact design for flexible use in the operating theatre
Robust suspension system for increased stability
Motorised focus for two-handed operation
Adjustable resistance for smooth and precise positioning
Automatic light switch-off in standby position
Quick activation of emergency light via push button
Compatibility with video cameras for documentation and teaching
Optional stereo co-observation module
Optional X-Y coupling for guided movement in one plane


Technical Details
Optical system: apochromatic, 200 mm focal length
Magnification: 5 steps (factors of 0.4 / 0.6 / 1.0 / 1.6 / 2.5)
Focus: motorised
Tube: inclined at 45 degrees
Illumination: fibre optic, 12 V halogen lamp, 100 W
Integrated filters: UV filter, blue barrier filter, retinal protection device
Optional X-Y coupling: 40 mm x 40 mm field, can be installed on site

Compatible Accessories
1-sensor and 3-sensor video cameras for image recording and transmission
Stereo co-observation module for shared viewing
X-Y coupling for precise, guided movement
Various additional filters for specific applications
