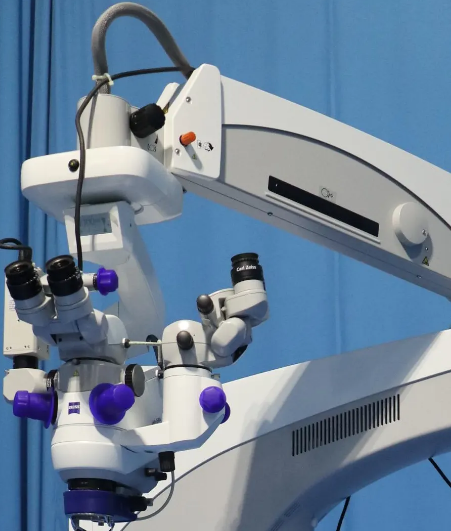

ZEISS OPMI Lumera 700 Microscope

The Zeiss OPMI Lumera 700 provides the latest in
ophthalmic technology as Zeiss’ flagship ophthalmic
surgical microscope for Vitreo-Retinal and cataract surgery.
Designed for integration of several visualization technologies and
video imaging in to one single platform.
The OPMI Lumera 700 provides surgeons a seamless,
integrated operating microscope allowing for
improved surgical outcomes.

The Zeiss Lumera 700 works seamlessly with fundus
viewing system RESIGHT 700
Zeiss Resight 700 provide high quality views of the retina along with Zeiss Invertertube binoculars.

Specs:
- Motorized zoom system with apochromatic lens, zoom ratio 1:6
- Magnification factor = 0.4 x – 2.4 x
- Focusing: electric / motorized, focus range: 70 mm
- Objective lens: f = 200 mm
(optionally also f = 175 mm or f = 225 mm with support ring)
- Binocular tube: Invertertube E
(optionally also Invertertube, 180° swivel tube, f = 170 mm,
inclined tube, f = 170 mm)
- Wide-angle eyepiece 10 x (optionally also 12.5 x)
- SCI: Coaxial and full-field illumination
- Fiber-optic illumination Superlux® Eye:
- Xenon short arc reflector lamp with HaMode filter
• Backup lamp in lamp housing, can be slid into position manually
- LED fiber-optic illumination:
• Near-daylight color temperature
• 50,000 hour lifetime at 50% light intensity
• HaMode filter
• 25% gray filter
- For all light sources:
• Blue blocking filter
• Optional: Fluorescence filter

ZEISS RESIGHT family (Resight 700)
- Mechanical data Focus range with LH175 lens holder: 31 mm
(position of intermediate image)
- Focus range with LH200 lens holder: 38 mm
(position of intermediate image)
- Rotation angle of lens revolver and holder: 0°–360°
- Lenses included 60D, 128D

Accessories
- Resight 700
- SONY 3CCD Camera Head
- SONY CMA-D2MD Camera Adaptor
- OLYMPUS OEV-261H
- Wireless foot pedal
- Alcon PUREPOINT 532mn Filter Lens (X2) (YOM 2018)

Software version 2.5
Excellent condition

Features
Overhead display
integrated assistant observer
Stereo Coaxial Illumination
Xenon, LED or Halogen Light source option
Integrated Keratoscope
Fluorescent Filter, UV, IR and Blue Blocking Filters
Fast Focus for quick change between two focal planes
integrated Slit Illumination
Fundus Viewing System Compatible, including Resight 700 and 500
Wireless Foot Control
