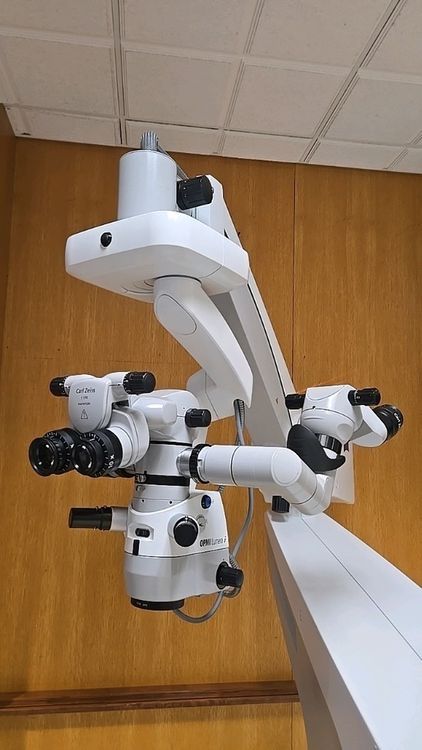

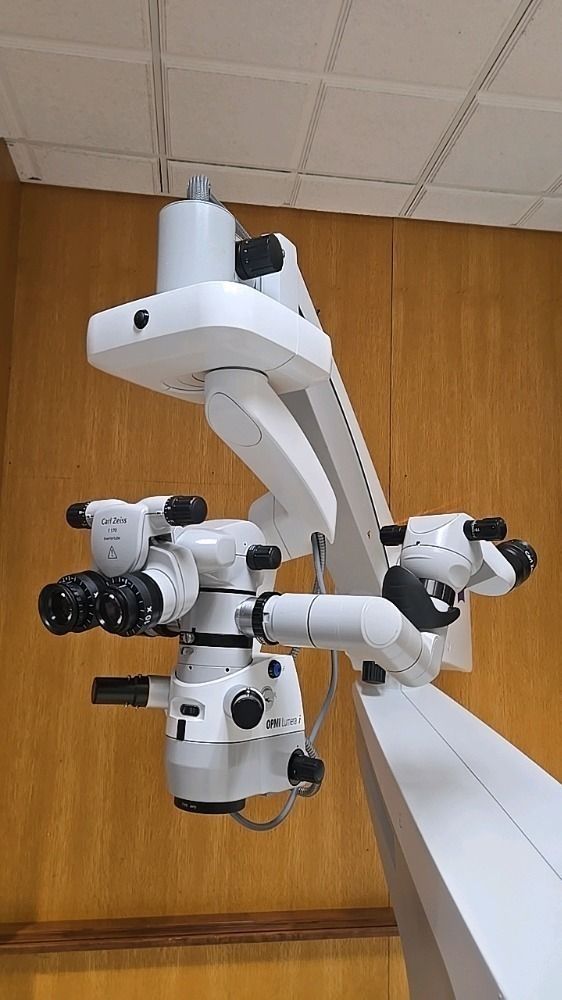

ZEISS OPMI Lumera I Ophthalmic Microscope

The ZEISS OPMI Lumera i is engineered for surgical excellence in cataract and retina procedures.
Combining unmatched ZEISS optics with Stereo Coaxial Illumination (SCI),
it delivers exceptional clarity, depth perception, and natural color rendition—
helping you see the finest anatomical details for more precise, confident surgeries.

Key Features
Stereo Coaxial Illumination (SCI) for stable, high-contrast red reflex and enhanced detail recognition.
Instant Red Reflex even with mature cataracts.
External Data Injection System (EDIS) for overlaying assistance functions in the eyepiece.
RESIGHT® fundus viewing system for clear, detailed visualization of the retina.
Deep View depth of field management system for adjustable depth of field or light transmission.
1Chip HD camera system for natural color rendition and crisp anatomical details.
CALLISTO eye® integration for precise and markerless LRI incisions, capsulorhexis, IOL centration, and toric IOL alignment.
K TRACK® for visualizing corneal curvature during corneal transplantations.
128D wide-field lens for peripheral visualization during vitrectomy.
60D macular lens for high magnification of the macula.
Invertertube® for ergonomic, upright posture during surgery.
Wireless foot control panel for customizable and convenient operation.

Technical Specifications
Optics & Visualization
Apochromatic optics.
Motorized zoom system, 1:6 zoom ratio, magnification factors γ = 0.4 to 2.4.
Focusing range: 50 mm.
Binocular tube: 0–180° tiltable (optional Invertertube®).
Eyepieces: 10x (optional 12.5x).
Objective lens: f = 200 mm (optional f = 175 mm).
DeepView depth of field management system.

Illumination
SCI red reflex and full-field illumination, both adjustable.
Integrated 408 nm UV barrier filter.
Blue blocking filter.
Retinal protection device.
Fiber optic illumination.
Optional fluorescence filter.
Light source: 12 V, 100 W halogen with fully automatic bulb change in case of lamp failure.

X-Y Coupling
Adjustment range: 61 mm x 61 mm.
Free programmable button for X-Y coupling, focus, zoom, and light starting positions.

Weight
Microscope: approx. 8.5 kg (without tube, objective lens, and eyepieces).

Suspension System
Floor stand.
Maximum load capacity: 14 kg (complete microscope with accessories).
