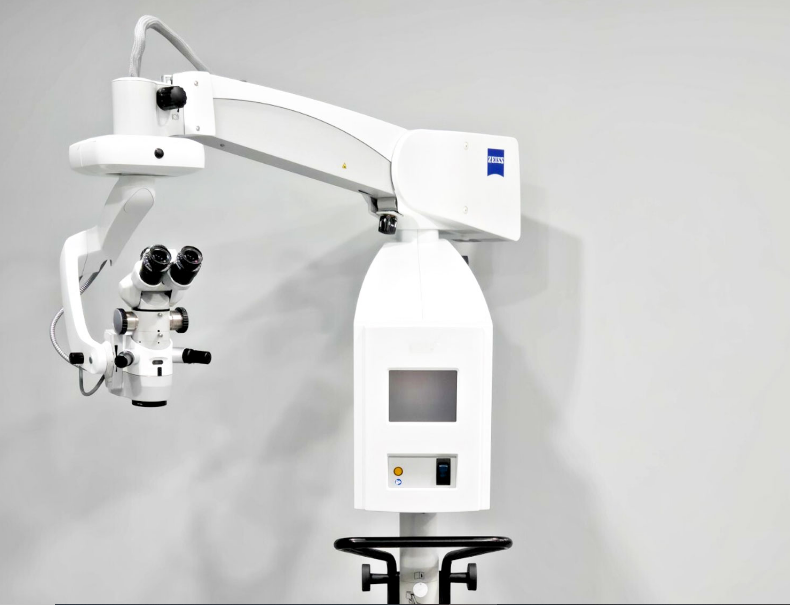

ZEISS OPMI Lumera i S7 Surgical Microscope

ZEISS OPMI Lumera i S7 Surgical Microscope, fully refurbished to OEM spec with
many preventative maintenance parts replaced and updated, motors/drives lubricated
and adjusted, switches and buttons serviced, internal and external optical glass cleaned
and aligned, as well as completed functionality test check list provided.

With many preventative maintenance parts replaced and updated,
motors/drives lubricated and adjusted, switches and buttons serviced,
internal and external optical glass cleaned and aligned,
as well as completed functionality test check list provided.

The Lumera i microscope is used for ophthalmology surgery such as refractive surgeries
(like LASIK), cataract surgery, glaucoma, retinal, corneal, eyelid surgery,
and eye muscle surgery.

Technical data:
Surgical microscope
Apochromatic optics
Motorized zoom system, 1:6 zoom ratio, magnification factors γ = 0.4 to 2.4
Focusing range: 50 mm
Binocular tube: 0-180° tiltable tube (optional Invertertube)
Eyepieces: 10 x (12.5 optional)
Objective lens f = 200 mm (f = 175 mm optional)
DeepView: depth of field management system
Optional: Resight 500 fundus viewing system
Illumination
SCI: red reflex illumination and full field illumination, both are adjustable,
patent pending
Integrated 408 nm UV barrier filter
Blue blocking filter
Retinal protection device
Fiber optic illumination
Optional: fluorescence filter
Lightsource
12 V, 100 W halogen light source with fully automatic lamp change in case of lamp failure
X-Y Coupling
61 mm x 61 mm adjustment range Free programmable button for starting positions of
X-Y coupling, focus and zoom, light
