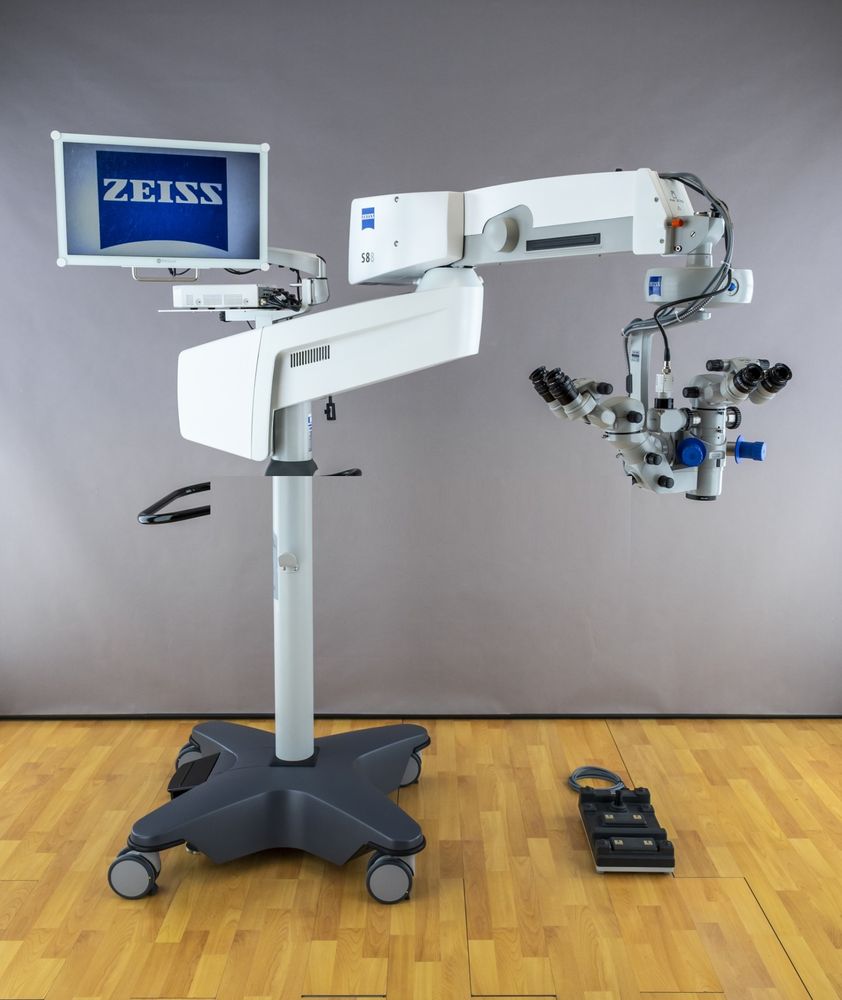

ZEISS OPMI Lumera T, S88 Ophthalmic Operating Microscope

Used, reconditioned, electrically controlled Zeiss OPMI Lumera T
ophthalmic operating microscope on S88 mobile stand.
The microscope has a wide range of applications in ophthalmology.

The microscope is fully functional and in
very good technical and visual condition.

All devices we sell have been verified and tested several times technically.
All parts that required it have been replaced.

EQUIPMENT
OPMI Lumera T optics
Light source Superlux Eye (Xenon)
Light source Halogen
Zeiss Invertertube 110° (manual inverter for the operating physician)
Zeiss Invertertube 110° (manual inverter for assistant physician)
Sony MCC-500MD HD Video Path
New NEOVO 22 inch medical monitor
DeepView - depth of field enhancement system
Zeiss S88 Tripod
Foot controller - wired
XY module
Red Reflex
Assist preview

TECHNICAL DATA
This is a high-class ophthalmic microscope with a large depth of field.
Its advantage is comfort during work, a very good quality light source,
and above all, excellent optics.

Electrically controlled microscope functions:
Smooth movement of the microscope arms
(electromagnetic stand clutches)
Smooth adjustment of magnification (Zoom)
and focus (Focus) using the foot controller
Smooth regulation of light intensity
Head movement along the XY axis

Parameters:
Total microscope magnifications: from 3.4x to 20.4x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Doctor's view with adjustable tilt angle from 0° to 110°
Assistant doctor view with adjustable tilt angle from 0 to 110°
Lens focal length f=200mm APO
Microscope arm with head tilt function: +180°/-180°
XY module zeroing function (return to initial position)
Protective filter:
Blue barrier filter - eye protection against UV radiation
Xenon and halogen lighting with fiber optics
Spare lamp modules built into the microscope stand
Main light source Xenon: 180W
Spare light source Xenon: 180W
Main light source Halogen: 100W
Spare light source Halogen: 100W
Power supply: 115-230V, 50-60Hz

Dimensions:
Microscope height:
min: 189 cm
max: 220 cm
Lens distance from ground:
min: 79 cm
max: 145 cm
Lens to column distance: max 134 cm
Microscope base: 80 cm x 80 cm
Weight: about 230 kg
