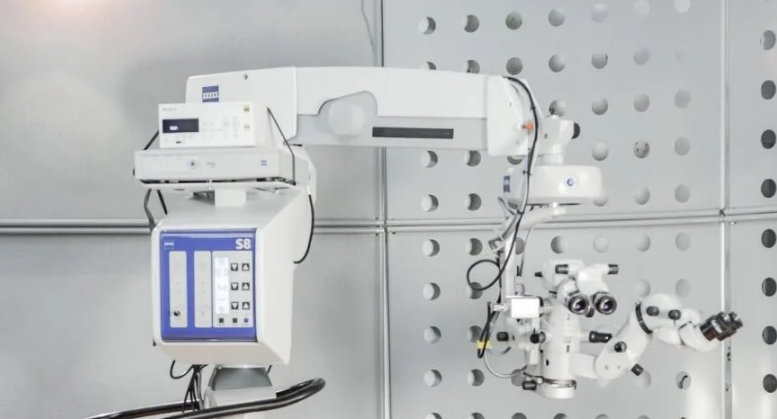

ZEISS OPMI Lumera T S88 Surgical Microscope

Zeiss OPMI Lumera T S88 Surgical Microscope Superlux Eye Trio 600.
Everything is in excellent condition from working facility.
Patient ready microscope operating at full factory specifications.
Ideal for cataract and other ophthalmology procedures as configured.

The Zeiss Lumera T S88 is an outstanding microscope designed for a full suite of
cataract and other ophthalmic procedures, the best in red reflex technology with
the introduction of Lumera Stereo Coaxial Illumination you see more contrast with
this brilliant, stable red reflex – even in decentered or strongly pigmented eyes.
The Lumera T S88 floor stand provides superior surgeon control from
the ergonomic hand grips to release the magnetic clutch brakes moving
the microscope across the surgical field with minimal effort.
Program the Lumera T S88 with up to 9 different users with
preset motorized speeds, illumination intensity and foot pedal controls.

Spesifications
Surgical Microscope
Apochromatic optics
Motorized Zoom: 1:6 zoom ratio
Magnification Factors: 0.4 to 2.4>
Focusing Range: 50 mm
Binocular Tube: Invertertube (optional 0-180° tiltable tube)
Eyepieces: 10x (12.5x optional)
Objective Lens: f = 200 mm (f = 175 mm optional)
DeepView: Depth of field management system
Integrated assistant’s microscope
Fully Stereoscopic

Illumination
SCI: red reflex illumination and surrounding field illumination,
both dimmable, patent pending
Retinal protection device
Fiber optic illumination
Light Source

Light Source
Superlux Eye Trio 600 xenon Light Source with manual bulb change
HaMode filter
Optional: 12V, 100W halogen Light Source with fully automatic bulb change in case of lamp failure
Option: dual halogen Light Source
Optional: xenon / halogen combi Light Source
Integrated 408 nm UV barrier filter
Blue-blocking filter
Optional: fluorescence filter

X Y Coupling
40 mm x 40 mm adjustment range
Button for starting positions of the X-Y coupling and focus

Suspension System
S88 floor stand
S8 ceiling mount
S81 ceiling mount
Maximum load: 20 kg (44.1 lb) (complete microscope equipment, including accessories)

Weight
13.7 kg (30.2 lb) (with Invertertube, integrated assistant’s microscope,
objective lens, and eyepieces)
