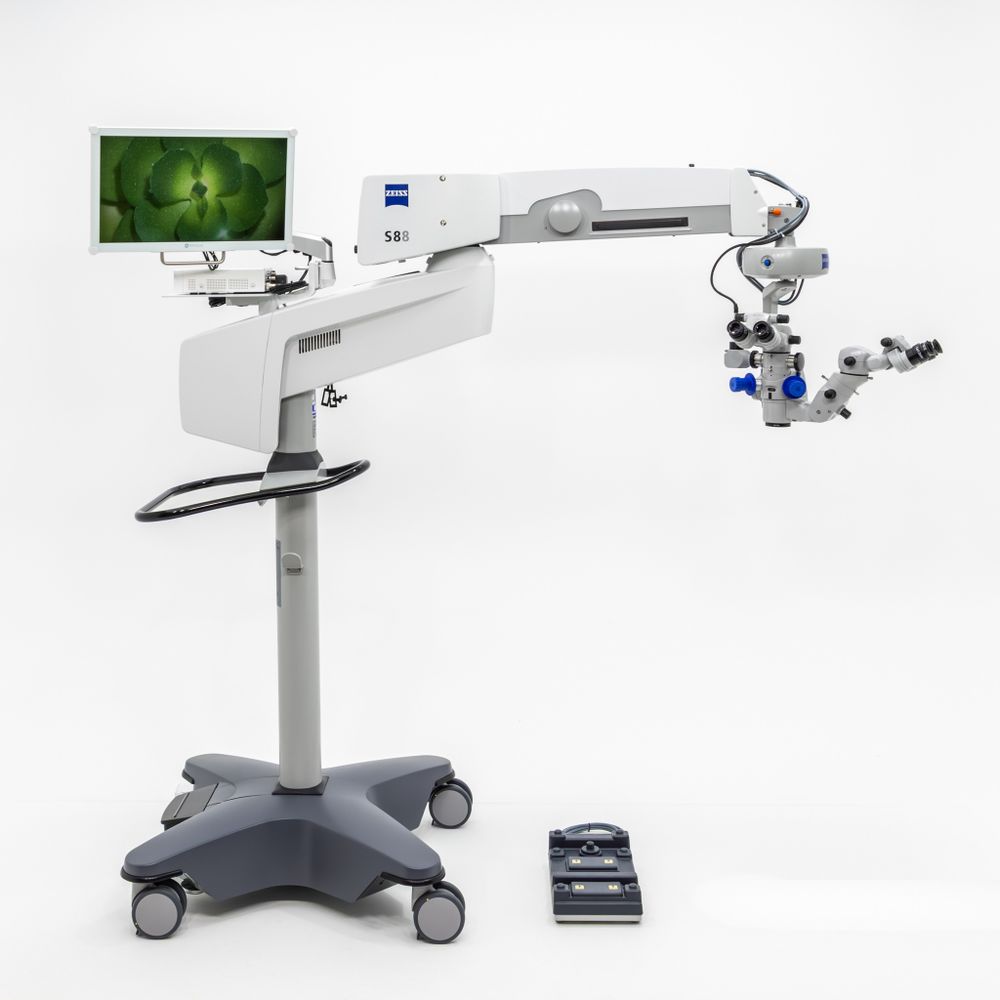

ZEISS OPMI Lumera T S88 Surgical Microscope

Reconditioned Zeiss OPMI Lumera T ophthalmic operating microscope on an S88 mobile stand.
The Zeiss OPMI Lumera T S88 is a specialized ophthalmic microscope.
The microscope is fully functional and in very good technical and visual condition.

APPLICATION
Ophthalmology

EQUIPMENT
Sony MCC-500MD HD video path
NEOVO 22-inch medical monitor

MICROSCOPE HEAD
ENLARGEMENTS
3.5x – 21x
Smooth change of magnifications
Speed ​​regulation
Motorized traffic

FOCAL
f=200 mm
Fixed focal length lens
Speed ​​regulation
Motorized traffic

XY MODULE
40 x 40 mm
Speed ​​regulation
Motorized traffic

ASSIST PREVIEW
Stereoscopic assistant view (Side view)

DOCTOR'S BINOCULAR
110° tiltable binocular tube with integrated image inverter
Eyepiece magnification 10x
Adjusting the pupillary distance

ASSISTANCE BINOCULAR
110° tiltable binocular tube with integrated image inverter
Eyepiece magnification 10x
Adjusting the pupillary distance

TILTING MECHANISM
+ 180°/-180°
Manual adjustment

POSITIONING THE MICROSCOPE HEAD
High-precision friction brakes

LIGHT SOURCE
TYPE
Integrated in the microscope stand (fiber optic)
Integrated Red Reflex lighting

MAIN LIGHTING
Xenon 180W

BACKUP LIGHTING
Xenon 180W
2 x Halogen 100W

INTENSITY ADJUSTMENT
Smooth, electric regulation of lighting intensity
via a foot controller and a control unit on a mobile stand

SUSPENSION SYSTEM
TYPE
Mobile tripod

SUSPENSION SYSTEM POSITIONING
High-precision electromagnetic brakes

BALANCING SYSTEM
Manual

CONTROL UNIT
Graphic LCD display
Possibility to program individual user settings

FOOT CONTROL
14 functions
Wire

DIMENSIONS AND WEIGHT
DIMENSIONS
Transport position: 125 x 81 x 188 cm
Mobile base: 81 x 81 cm

LIBRA
215 kg
