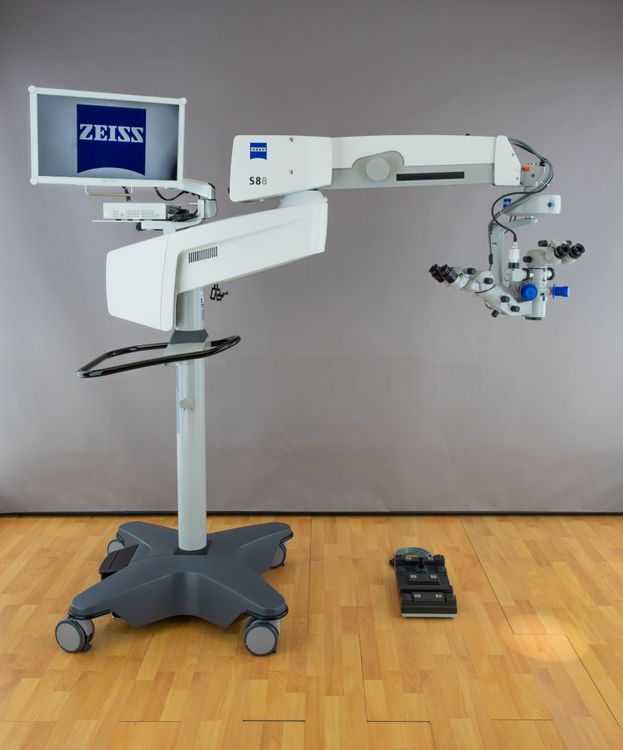

ZEISS OPMI Lumera T, S88

Used, reconditioned, electrically controlled Zeiss OPMI Lumera T
ophthalmic surgical microscope on an S88 mobile stand.
The microscope has a wide range of applications in ophthalmology.
The microscope is fully functional and in very good technical and visual condition.

EQUIPMENT
OPMI Lumera T Optics
Superlux Eye (Xenon) light source
Light source Halogen
Zeiss Invertertube 110° (manual inverter for the operating physician)
Zeiss Invertertube 110° (manual inverter for assistant physician)
Sony MCC-500MD HD video path
New NEOVO 22-inch medical monitor
DeepView - depth of field enhancement system
Zeiss S88 Tripod
Foot controller - wired
XY module
Red Reflex
Assist preview

TECHNICAL DATA
This is a high-quality ophthalmic microscope with a large depth of field.
Its advantages include ease of use, a high-quality light source, and, above all,
excellent optics.

Electrically controlled microscope functions:
Smooth movement of the microscope arms (electromagnetic stand clutches)
Smooth adjustment of magnification (Zoom) and focus (Focus) using a foot controller
Smooth regulation of light intensity
Head movement along the XY axis

Parameters:
Total microscope magnifications: from 3.4x to 20.4x
Doctor's glasses magnification: 10x
Assistant eyepiece magnification: 10x
Doctor's view with adjustable angle from 0° to 110°
Doctor/assistant view with adjustable tilt angle from 0 to 110°
Lens focal length f=200 mm APO
Microscope arm with head tilt function: +180°/-180°
XY module reset function (return to initial position)
Protective filter:
Blue barrier filter - eye protection against UV radiation
Xenon and halogen lighting with fiber optics
Spare lamp modules built into the microscope stand
Main light source Xenon: 180W
Spare light source Xenon: 180W
Main light source Halogen: 100W
Spare light source Halogen: 100W
Power supply: 115-230 V, 50-60 Hz

Dimensions:
Microscope height:
min: 189 cm
max: 220 cm
Lens distance from ground:
min: 79 cm
max: 145 cm
Distance from the lens to the column: max 134 cm
Microscope base: 80 cm x 80 cm
Weight: about 230 kg
