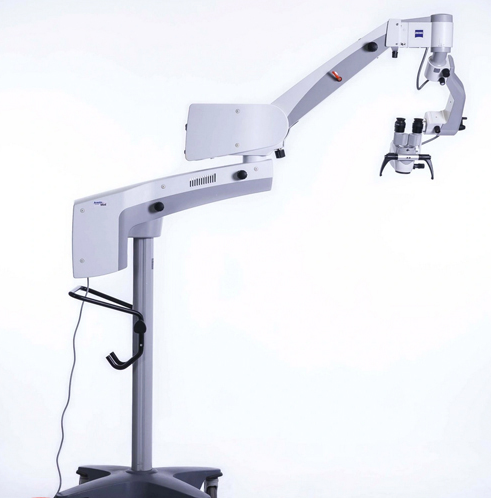

ZEISS Opmi Movena S7 Surgical Microscope

Ref : 2771223-14-AW
Condition : Used
Manufacturer : ZEISS
Model : Opmi Movena S7
Short Description : Surgical Microscope
Year(s) : 2015
Quantity : 1
Location : Seller or machines location:
ASIA (South East)

Used condition like new, Excellent and ready to work
Come with warranty 12 month

Features:
- Power supply: 115-230V / 50-60Hz / 8-10A
- Manual zoom, 1:6 ratio in 5 steps
- Manual, internal Varioscope Focus, F range: 200 – 415 mm
- Tilting main tube of the binoculars 0-180°
- Superlux 180W xenon light source, main and backup lamp
- Apochromatic optics
- DeepView: Depth of Field Management System
- Step-by-step zoom adjustment (Zoom) and smooth focus adjustment (Focus)
- ClickStop function
- Smooth regulation of light intensity
- Head tilt in two planes
- Total microscope magnifications:
- 200mm focal length: 2.4x to 14.6x
- 415mm focal length: 1.5x to 8.7x
- Doctor's glasses magnification: 10x
- S7 mobile tripod

Dimensions:
- Microscope height: min: 173 cm, max: 209 cm
- Distance from the lens to the ground: min: 85 cm, max: 147 cm
- Distance from the lens to the column: max: 160 cm
- Base: 70 cm x 70 cm
- Weight: approx. 170 kg

Specification:
Magnification: Manual Carl Zeiss magnification changer, 1:6 ratio in 5 step.
Focusing System Varioskop: Internal, manual, continuously adjustable.
Working Range: 200 - 415 mm.
Main Binocular Tube:
- Straight tube f = 170 mm,
- 0 - 180° tiltable tube f = 170 mm or f = 200 mm with 10x or
12.5x widefield eyepieces (optional),
- Foldable tube f170 /f260,
including PROMAG™ function for additional 50% magnification and
integrated rotate function (optional).
Illumination:
- Halogen illumination for main and backup illumination: 100 W halogen lamp,
backup lamp in fast-action lamp changer.
- Superlux® 180 for main and backup illumination (optional): 180 W xenon lamp
with daylight color temperature , backup xenon lamp in fast-action lamp changer.
Rated Voltage: 115 V / 230 V ± 10%
Rated Frequency: 50 Hz - 60 Hz
Power Consumption: - 115 V, max. 10 A, - 230 V, max. 8 A
Circuit Breaker: Automatic.
