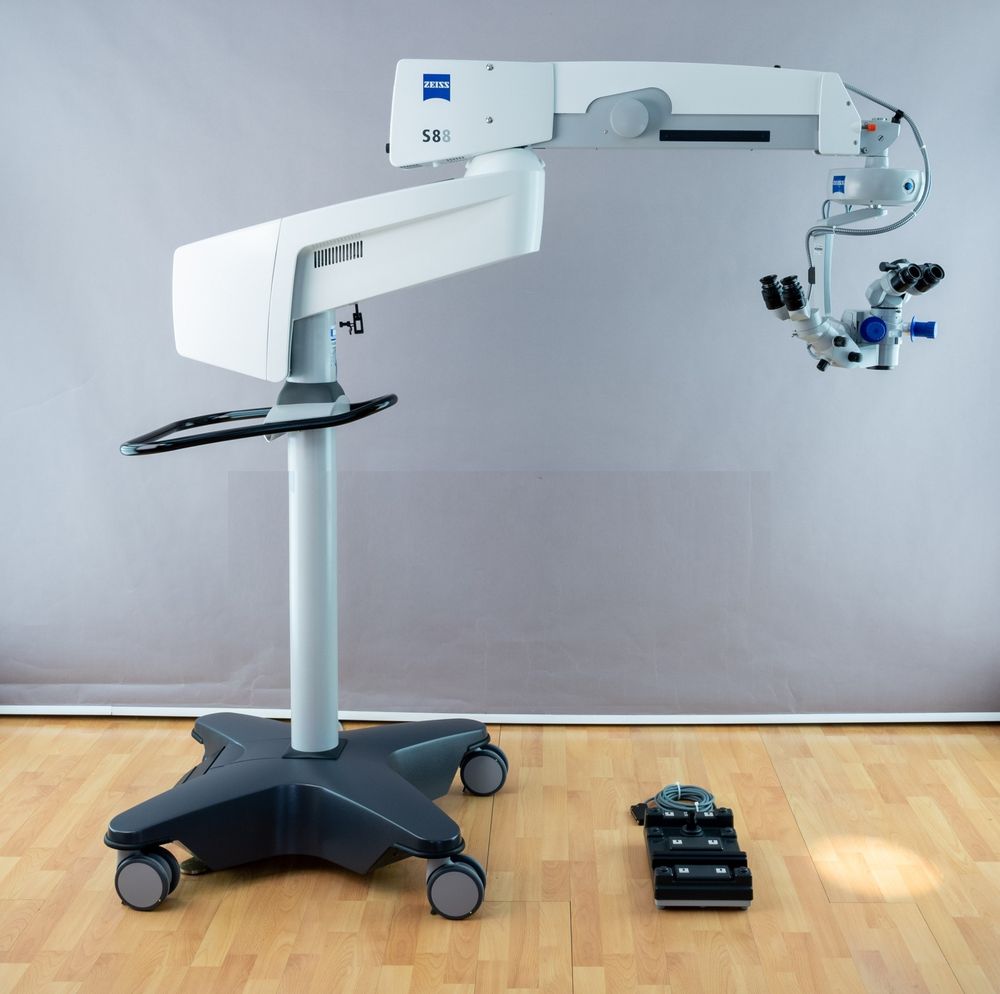

ZEISS OPMI Visu 210 S88 Ophthalmic Surgical Microscope

Used, reconditioned, electrically controlled Zeiss OPMI Visu 210
ophthalmic surgical microscope on an S88 mobile stand.
The microscope has a wide range of applications in ophthalmology.
The microscope is fully functional and in very good technical and visual condition.

All the devices we sell have been technically verified and tested several times.
Any parts that require replacement have been replaced.
To ensure this, our devices are tested again before each shipment to the customer.

EQUIPMENT
OPMI Visu 210 optics
DeepView - Depth of Field Enhancement System
Zeiss S88 Tripod
Foot controller
XY module
Red Reflex
Assist preview
Sterilization handles with electromagnetic brake release function
GG 475 protective filter
KK 40 protective filter

Optional equipment:
Video track
Zeiss Resight 500/Zeiss Resight 700

TECHNICAL DATA
This is a high-quality ophthalmic microscope with a large depth of field.
Its advantages include ease of use, a high-quality light source,
and above all, excellent optics.

Electrically controlled microscope functions:
Smooth movement of the microscope arms (electromagnetic stand clutches)
Smooth adjustment of magnification (zoom) and focus (focus)
using a foot controller
Smooth regulation of light intensity
Head movement along the XY axis

Parameters:
Total microscope magnifications: from 4.3x to 25.5x
Doctor's glasses magnification: 12.5x
Assistant eyepiece magnification: 10x
Doctor's view with adjustable angle from 0° to 180°
Assistant doctor view with a fixed 0° tilt angle
Lens focal length f=200 mm APO
Microscope arm with head tilt function: +180°/-180°
XY module reset function (return to initial position)

Lighting system:
6° - to reduce the reflection of light on the cornea while maintaining high contrast
2° - to enhance the red reflex

Apertures:
Aperture to reduce reflections from tools
Retinal protection aperture
2.5mm slit lighting (horizontal)
5mm slit lighting (horizontal)
2.5mm slit lighting (vertical)
Protective filters:
UV1 GG 475 protective filter: eye protection against UV radiation
KK 40 Protective Filter: Color Contrast Enhancement
Halogen lighting with fiber optic
A spare bulb module built into the microscope stand
Main light source: Halogen 100W
Spare light source: Halogen 100W
Power supply: 115-230 V, 50-60 Hz

Dimensions:
Microscope height:
min: 187 cm
max: 220 cm

Lens distance from ground:
min: 92 cm
max: 152 cm

Distance from the lens to the column: max 135 cm
Microscope base: 90 cm x 90 cm
Weight: about 280 kg
