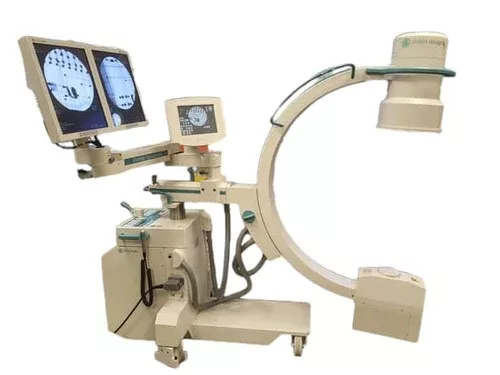

Ziehm Quantum

Ziehm Quantum 2008 Flat Panel LCD Screen and
Touch Monitor Control USB and Dicom
Condition EXCELENT!

The Ziehm Quantum is at the forefront of innovative, mobile,
surgical C-Arm design. Eliminating the need for a monitor cart in
the surgical room, the Ziehm Quantum is truly the world's first full-featured,
self-contained mobile surgical C-Arm.
Its small footprint and lightweight design coupled with
the advanced features of a state of the art 16-bit image system makes the
Ziehm Quantum the most compact and versatile mobile C-Arm
available today.

Benefit from Superior Imaging Technology
Image quality is clearly the most important feature of any mobile C-Arm.
The Ziehm Quantum™ features a 1K2 x 12-bit Highline video/image display,
digital image rotation, large storage capacity,
and integrated 18.1”high-resolution TFT monitors which are capable
of displaying 768 shades of gray. The Ziehm Quantum™ provides superior
resolution and detailed visualization in all applications.

Choose Your Anatomical Program
The Anatomical Programs found in every Ziehm Quantum™
C-Arm optimize image quality for each body region using the
lowest possible dose. Choose between the ‘Bone/Extremities’
‘Pelvic/Spine’, and ‘Heart/Thorax’ Anatomical Programs to
ensure superb image quality in each type of procedure.
In addition, unique ‘Metal’ and ‘LPD’ (Large Patient Diameter Key)
image programs further enhance image quality in
otherwise difficult imaging conditions.

Considerate Use of Radiation
Wherever you look on the Ziehm Quantum™, you will find features that
can significantly reduce the radiation dose delivered to the patient,
the physician, and personnel within the operating room.

Ziehm Imaging™ has been the industry’s low dose leader ever since
Ziehm pioneered the integration of high-frequency generators into
mobile fluoroscopic C-Arms

Ziehm Quantum™ –Integration with Image Guided Surgery (CAS)
In CAS, the x-ray image becomes a roadmap of the patient’s anatomy that
is correlated to the real-time position of the surgical instrument.
The surgeon follows the instruments movements without requiring
continuous x-ray imaging of the patient.
This technology has its biggest impact on the brain and spinal surgery as
well as orthopedics. Proven compatibility with CAS systems is essential for
success. CAS and mobile C-Arm systems can be chosen independently in
order to best benefit individual requirements. The Ziehm Quantum has
been integrated with leading fluoroscopic CAS systems, such as Medtronic,
Brainlab and Z-Kat.

Digital Network Integration
The Ziehm Quantum has equipped with DICOM 3.0 connectivity by
providing Work List, Print and Storage Class image send capabilities to
your hospital network.

Image Storage and Hardcopy
Once acquired, images can be stored on different media such as Hard Disk,
USB memory, and optional DVD, providing the medical team with a
convenient and portable record of patient data gathered from an
imaging procedure.

Ziehm Quantum Specifications
Dimensions
Orbital rotation: 135° a
Angulation: ± 225°
Swiveling (panning): ±10°
Horizontal movement: 220 mm
Vertical movement: 430 mm

C-Arm
Source–image receptor distance: 970 mm
Source-image receptor Opt 31: 1007mm
Vertical free space: 750 mm
Vertical free space: 787.4mm
Immersion depth: 680 mm

Image Intensifier
Nominal sizes: 23 / 17 / opt (10) cm

Max. Operating Data
Fluoroscopy Generator: 110 kV / 6 mA - 80 kV / 6 mA
Direct Radiography: 110 kV / 8 mA - 80 kV/8 mA
Radiography: 110 kV / 18 mA, 110 kV / 20 mA - 80 kV / 18mA, 80 kV / 20 mA

Max Power Output
Fluoroscopy: 660W (110 kv / 6mA)
Direct Radiography: 880 W (110 kV / 8 mA)
Direct Radiography: 1980W (110 kV / 18 mA), 2200W (110kV / 20mA)

Nominal Electric Power
2000W at 100kV / 20 mA / 0.1s

X-Ray Tube
Dual-focus stationary-anode tube

Focal Point Nominal Size
Nagel:
Small - 0.6 acc. to IEC
Large 1.5 acc to IEC
Toshiba
Small - 0.5 acc. to IEC
Large - 1.5 acc to IEC

Power Specifications
Power: 120 Vac 60 Hz Option:230 Vac 60 Hz
Direct Radiography: 40 - 110 kV
Tube Current: 2 mA min/ 20mA max
mAs Range: .4 mAs min./100mAs max
Fluoroscopy: 40-110kV - 0.1-6mA
Pulsed mode: Pluse Max 3F/s
Digital Radiography: 40-110 kV
Operating Frequency: 20 kHz

Environmental
During Storage Conditions
Temperature: -10°C to +60°C
Relative air humidity: 10% - 95% non Condensing max.
During Operation Environmental
Temperature: +10°C to +35°C
Relative air humidity: 35%-75% in Condensing max.
