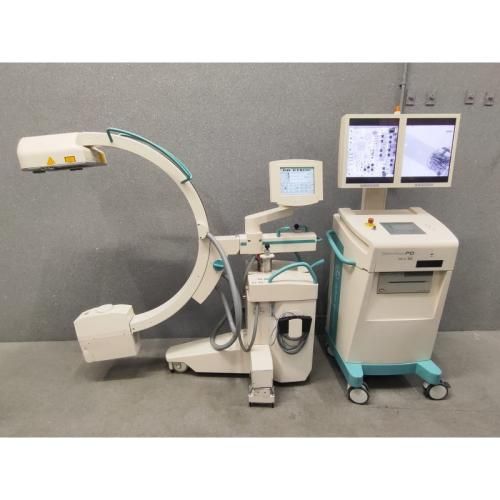

Ziehm Vision FD

Options :
YOM: 2010 Bone/Heart/Bone3D/Endo/Abdomen/Soft

Features
Distortion-free digital imaging thanks to flat panel technology
Simultaneous display of soft tissue and bone with
high dynamic range
Automatic dose reduction with ZAIP and SmartDose
ODDC system: real-time adaptation to patient movement
Dual 19" high-brightness touchscreen with intuitive user interface
Laser positioning and virtual collimation without radiation emission
Specific dose reduction modes for obese patients
PreMag function for radiation-free magnification
Wireless video transmission and optional wireless foot pedal
Integration into hospital networks via NetPort and DICOM
Scalable software interface with additional modules
Ergonomic design with counterweights for optimal manoeuvrability

Technical Details
Image technology: 20 x 20 cm flat panel detector
Resolution: 1k x 1k
Grey levels: 65,536
Generator: Pulsed monoblock, up to 25 frames/s
Cooling system: Advanced Active Cooling (AAC)
C-arm opening: 89.5 cm
Field of view: 396 cm² (flat panel)
Footprint dimensions: 0.8 m²
Approximate weight: Approximately 175 to 200 kg depending on
configuration
Network connection: DICOM 3.0 interface, optional WLAN
2D navigation compatibility: Yes
Embedded systems: ZAIP, SmartDose, ODDC, SmartControl

Compatible Accessories
Wireless foot switch (Wireless Dual-Plus-Footswitch)
Wireless video transmission to wall or ceiling screens
SmartVascular module for complex vascular procedures
Remote Vision Centre for a second control station
Anatomical Marking Tool (AMT) for direct anatomical annotations
WLAN connection for wireless image transfer to PACS
SmartArchive system for backup to DVD or USB
DICOM 3.0 interface for integration into the hospital system
Additional software modules via open architecture
